一、基于 SIP 的 VoIP 通话

1.1 什么是基于 SIP 的 VoIP 通话

使用 SIP（会话初始协议）作为信令协议，在 IP 网络上建立、管理并终止的实时语音（或视频）通话。

SIP（会话初始协议）通话是一套为多媒体会话“铺路架桥”的标准化信令。它的核心价值不在于传输语音本身，而是专注于高效、灵活地建立、管理和结束一个通信会话。
RTP 传输媒体：一旦通话建立，双方的语音/视频数据包通过 RTP 协议直接（或经过媒体代理）发送给对方。

这种分离的架构，使得基于 SIP 的 VoIP 系统具备高灵活性、低成本、易扩展的特点，是当今企业通信、运营商网络（VoLTE）、呼叫中心、云通信等领域的事实标准。

1.2 核心工作机制

一次通话可以拆解为用户注册、呼叫建立、媒体协商、媒体传输、呼叫终止 五个环节。

用户注册：终端向服务器注册；服务器验证身份；目的是让服务器知道用户当前的 IP 地址和端口
呼叫建立：首先是主叫发起呼叫(INVITE)，SIP 代理服务器将 INVITE 消息转发到被叫，消息中携带 SDP（媒体协商：双方协商 RTP 的接收 IP、端口、编解码器、打包时长、媒体方向等）；然后是三次握手 ①180 ringing：被叫端振铃，主叫听到回铃音 ②200 OK：被叫接听，返回 SDP 应答，确认使用的编解码器、媒体接收地址等 ③ACK：主叫确认收到 200 OK，会话正式建立。
媒体传输：会话建立之后，双方就开始使用 RTP（实时传输协议）直接发送媒体包。
呼叫终止：任一方挂断时，发送 BYE 请求，对方回复 200 OK，双方停止 RTP 流，释放信令对话和媒体资源。

1.3 主要优势

开放标准与互操作性：SIP 由 IETF 标准化（RFC 3261），不同厂商的设备（如 IP 话机、软电话、网关、服务器）都能互联互通，企业无需绑定单一供应商，显著降低了硬件采购和系统集成的成本。
信令与媒体分离：SIP 只负责呼叫建立、管理和拆除，而实际的语音/视频数据由 RTP 协议在终端之间直接传输（或经媒体代理）。这种解耦架构让媒体流不必经过 SIP 服务器，从而减少延迟、节省带宽，并避免服务器成为性能瓶颈。
灵活的扩展能力：SIP 基于文本的格式类似 HTTP，易于增加新方法（如 REFER、INFO）或头域，可轻松支持呼叫转接、会议、保持/恢复、即时消息、在线状态等补充业务，适应从企业通信到运营商网络的各种需求。
移动性与漫游支持：用户可在任何有互联网接入的地方（办公室、家庭、酒店、4G/5G）登录同一个 SIP 账号。注册服务器自动记录当前位置，来电能准确送达，实现“号随人走”，特别适合远程办公和多分支机构场景。
成本优势：基于 SIP 的 VoIP 系统可以使用通用的 Linux 服务器和开源软件（如 Asterisk、FreeSWITCH、Kamailio）搭建，无需昂贵的老式程控交换机，且语音流量通过互联网传输（SIP Trunk），大幅降低长途和本地通话费用。

1.4 典型应用场景

SIP 门禁/门铃：访客按铃后通过 SIP 呼叫业主手机或室内分机，可远程可视对讲并开锁。
SIP 广播喇叭：在校园、工厂、地铁站等场所，通过 SIP 协议实现分区广播、定时打铃、应急疏散语音播报。
SIP 电梯电话：电梯内紧急呼叫按钮直连 SIP 网关或 IP 话机，自动拨打物业或救援中心，支持免提对讲。
SIP 报警柱/对讲柱：安装在停车场、公园、景区，遇到紧急情况一键呼叫监控中心，实现双向语音通话。
SIP 调度台：用于公安、机场、矿山等指挥调度系统，可一键呼叫多个 SIP 终端，支持群组对讲、录音、强插等功能。
SIP 会议麦克风/音视频会议终端：基于 SIP 协议加入企业电话会议或视频会议，与传统电话系统互通。
SIP 传感器/紧急按钮：老人或病人按下按钮后，自动向预设的 SIP 号码（如护工手机）发起呼叫，并推送位置和病历信息

依托 SIP 协议的标准化、IP 网络化和易融合特性，可以实现跨厂商、跨系统的音视频通信与联动控制。

二、演示功能概述

单网卡测试 sip 功能：4g 联网测试 sip 功能、以太网联网测试 sip 功能；
多网卡测试 sip 功能：4g 联网 + 以太网联网测试 sip 功能

本文使用 Air780EHV 开发板，分别演示 4g 联网测试、以太网联网测试和多网卡组合测试 sip 功能。

场景一：4g 单网卡联网测试

网络设备驱动模块：根据选择的网络类型在 netdrv_device.lua 文件中加载对应的网络驱动，这里选择 4g 驱动（require "netdrv_4g"）。
音频设备初始化与控制：使用 exaudio.setup 统一配置 ES8311 音频编解码芯片和扬声器功放，包括 I2C、I2S 接口设置及音量控制。
拨号/接听：在无来电的情况下，单击 boot 键进行拨号；收到来电，单击 boot 键进行接听
挂断：来电/拨号/通话过程中，单击 PWRKEY 键进行挂断

场景二：以太网单网卡联网测试

网络设备驱动模块：根据选择的网络类型在 netdrv_device.lua 文件中加载对应的网络驱动，这里选择以太网驱动（require "netdrv_eth_spi"）。
音频设备初始化与控制：使用 exaudio.setup 统一配置 ES8311 音频编解码芯片和扬声器功放，包括 I2C、I2S 接口设置及音量控制。
拨号/接听：在无来电的情况下，单击 boot 键进行拨号；收到来电，单击 boot 键进行接听
挂断：来电/拨号/通话过程中，单击 PWRKEY 键进行挂断

场景三：多网卡联网组合通话测试

网络设备驱动模块：根据选择的网络类型加载对应的网络驱动，这里选择多网融合驱动（require "netdrv_multiple"）。
音频设备初始化与控制：使用 exaudio.setup 统一配置 ES8311 音频编解码芯片和扬声器功放，包括 I2C、I2S 接口设置及音量控制。
拨号/接听：在无来电的情况下，单击 boot 键进行拨号；收到来电，单击 boot 键进行接听
通话保持：当前配置的网络优先级是：以太网 > 4g；先断开以太网，用 4g 联网注册 SIP，在通话过程中连接以太网，通话能够继续保持，通话结束后，下次重新发起 SIP 通话时，会使用当时优先级最高并且网络状态就绪的网卡重新注册。
挂断：来电/拨号/通话过程中，单击 PWRKEY 键进行挂断

三、准备硬件环境

参考：硬件环境清单第二章节内容，准备，并组装好硬件环境。

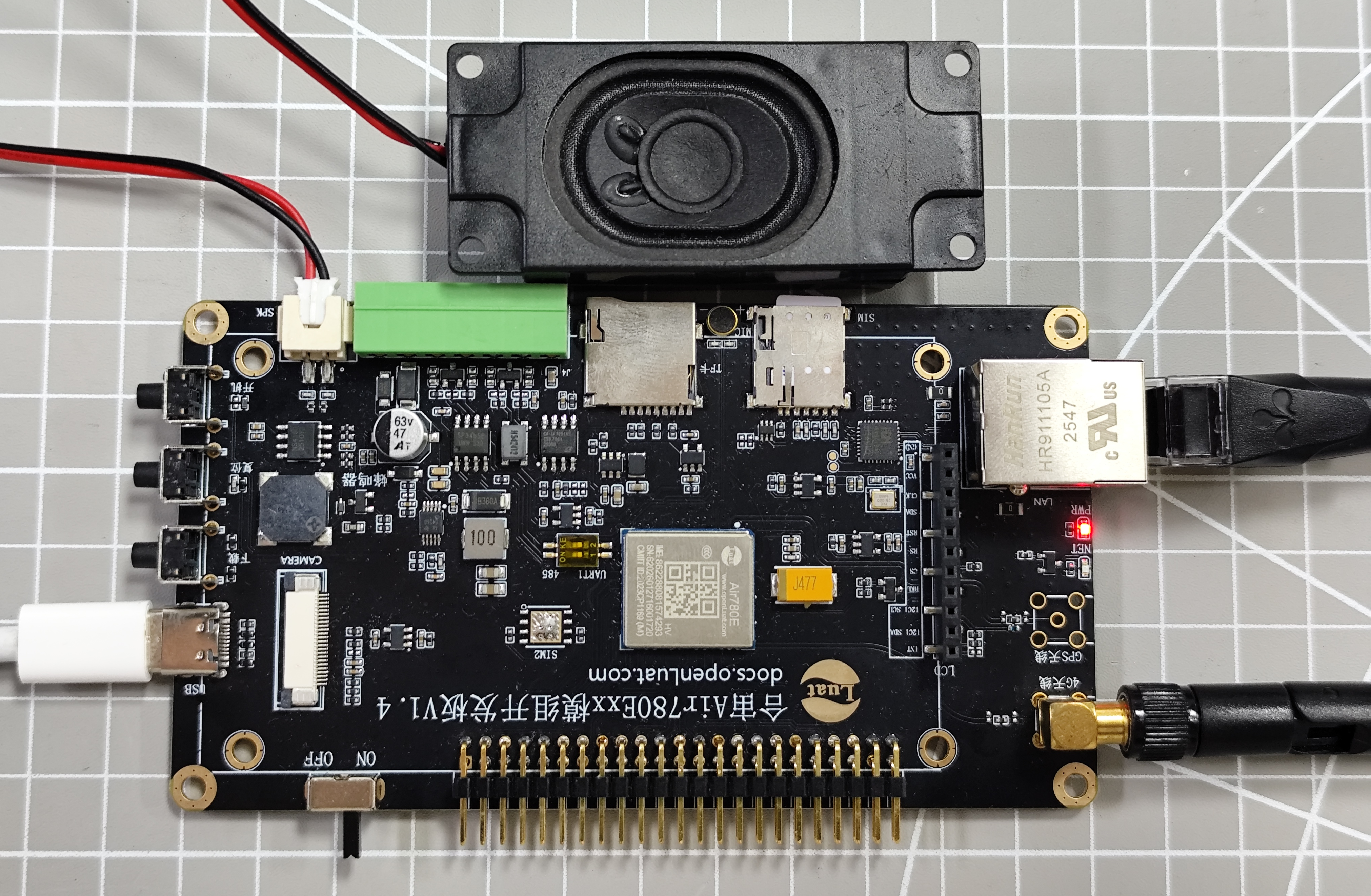

Air780EHV 开发板一块 +SIM 卡一张 +4g 天线一根 + 网线一根，所有硬件环境组装好，实际测试根据需要进行，具体可以参考”演示核心步骤“中的对应操作。
TYPE-C USB 数据线一根，Air780EHV 开发板和数据线的硬件接线方式为：
Air780EHV 开发板通过 TYPE-C USB 口供电；
TYPE-C USB 数据线直接插到核心板的 TYPE-C USB 座子，另外一端连接电脑 USB 口；

Air780EHV核心板购买链接：合宙Air780EHV核心板内置Audio Codec 支持VoLTE/TTS-淘宝网

四、准备软件环境

4.1 工具 + 内核固件 + 脚本

烧录工具 Luatools；
Air780EHV V2034 及以上版本固件，除 11/12/14 和 111/112/114 固件以外，其他均可，如果需要 TTS 播放，则只能选 1/3/5/7/13/16和101/103/105/107/113Air780EHV 固件；本 demo 开发测试时使用的固件为 Air780EHV V2034 版本固件，如果发现最新版本的内核固件测试有问题，可以使用我们开发本 demo 时使用的内核固件版本来对比测试；
luatos 需要的脚本和资源文件
脚本和资源文件点我浏览所有文件
准备好软件环境之后，接下来查看如何使用 LuaTools 烧录软件，将本篇文章中演示使用的项目文件烧录到 Air780EHV 开发板中，或者查看 Air780EHV 整机开发板使用说明_V1.4 ，将本篇文章中演示使用的项目文件烧录到 Air780EHV 开发板中。
lib 脚本文件：使用 Luatools 烧录时，勾选添加默认 lib 选项，使用默认 lib 脚本文件，如果测试有问题，尝试手动添加 libs（..\LuatOS\script\libs）;

4.2 API 介绍

这里仅介绍本篇文档所使用的 API，详情请查看：API - exsip

4.3MicroSIP/LinPhone 测试 sip 通话功能

服务器地址：180.152.6.34
端口号：8910
域名：180.152.6.34
用户名：100001
密码：Mm123..
SIP传输方式：TCP/UDP

PC 端软件：MicroSIP

下载链接：点击下载MicroSIP

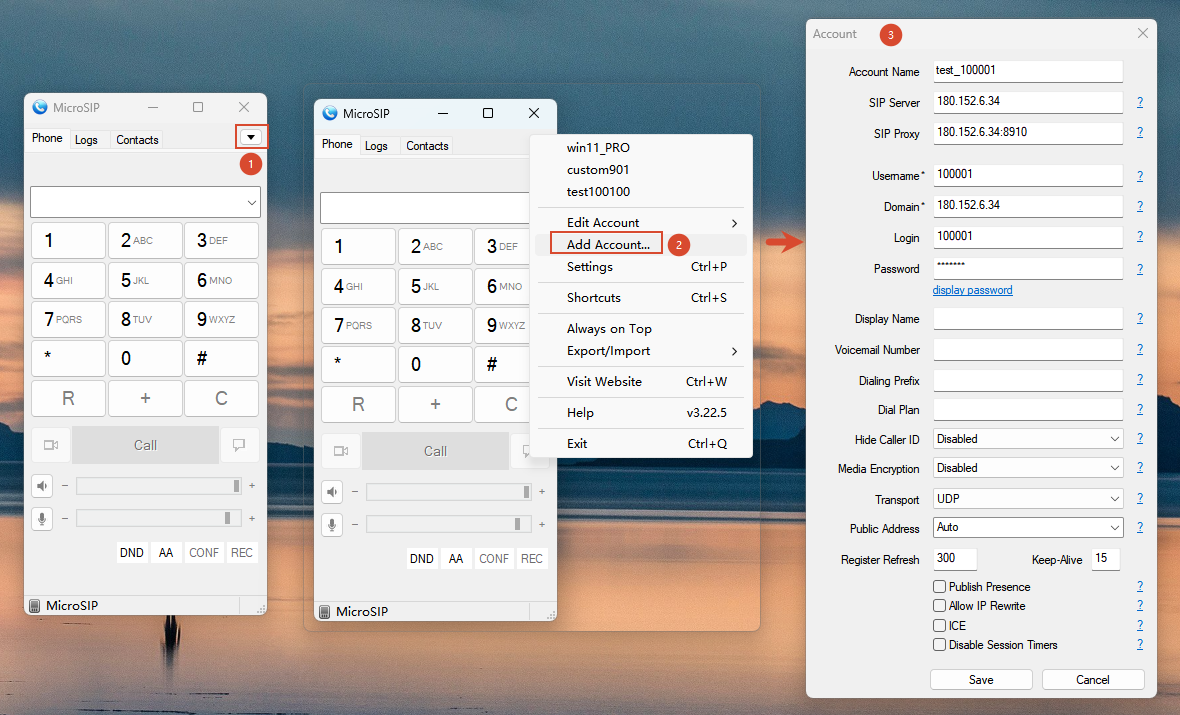

添加账号信息

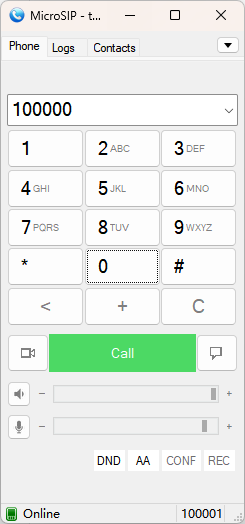

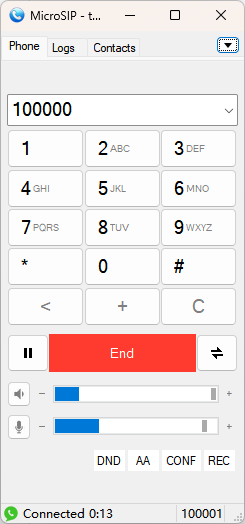

来电\拨号\通话

4.4 安卓版软件：Linphone

下载链接：点击下载Linphone

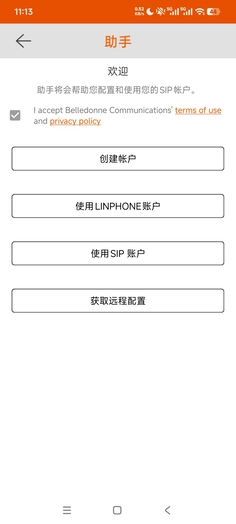

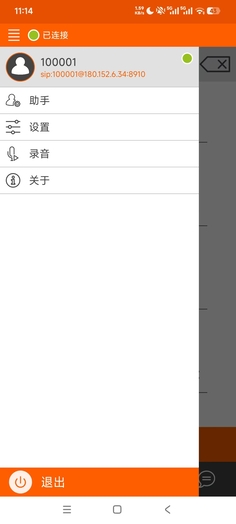

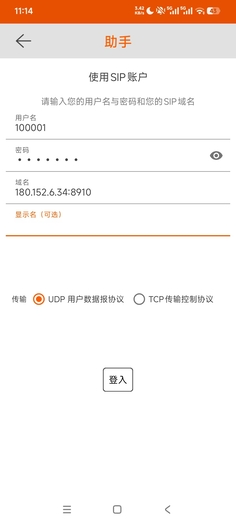

添加账号信息

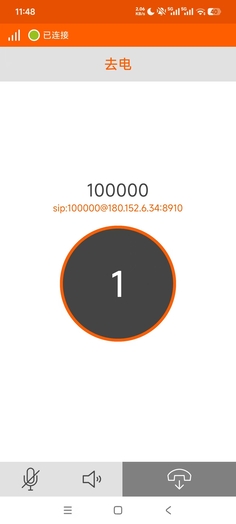

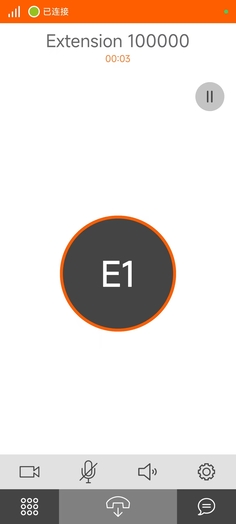

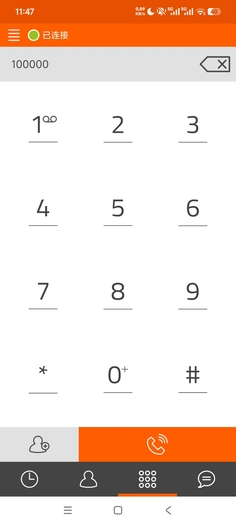

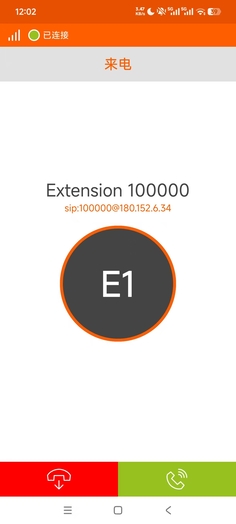

来电\拨号\通话

五、代码演示

程序架构

sip/
├── main.lua：主程序入口，加载网络驱动模块、SIP通话模块和按键处理
├── sip_app/
│   ├── sip_app_main.lua：sip主入口;
│   ├── sip_app_key.lua：按键相关处理;
├── netdrv/
│   ├── netdrv_4g.lua：4g网络模块
│   ├── netdrv_eth_spi.lua：“通过SPI外挂CH390H芯片的以太网卡”驱动模块
│   ├── netdrv_multiple.lua：多网卡（4G网卡、通过SPI外挂CH390H芯片的以太网卡）驱动模块
├── netdrv_device.lua：网络设备驱动模块，根据选择的网络类型加载对应的网络驱动
├── audio_drv.lua: 管理音频设备初始化与控制
├── tts_speaker.lua：语音播报

当前我们有测试账号 100000 和 100001，如果您有自己的 SIP 服务器，那么只需要更改 sip_app_main.lua 文件中 SIP_CONFIG 相关参数和 sip_app_key.lua 的目标号码

local SIP_CONFIG =
{
    sip_server_addr = "180.152.6.34",
    sip_server_port = 8910,
    sip_domain = "180.152.6.34",
    sip_username = "100000",
    sip_password = "Mm123.",
    _-- sip_username = "100001",_
    _-- sip_password = "Mm123..",_
    sip_transport = exsip.TRANSPORT_UDP,
    auto_answer = false,
}

local function **boot_key_handler**()
    log.**info**(g_tag, "按下BOOT键")
    ...

    sys.**publish**("SIP_APP_MAIN_DIAL_REQ", g_tag, "100001")
end

六、功能演示

1、搭建好硬件环境

2、在 netdrv_device.lua 中选择要测试的网卡场景:

场景一：4g 联网测试：require "netdrv_4g"
场景二：以太网联网测试：require "netdrv_eth_spi"
场景三：多网卡联网测试：require "netdrv_multiple"

3、在 sip_app_main.lua 中的 SIP_CONFIG 配置 SIP 服务器地址，端口，域名，用户名，密码，注意：服务器地址、端口、用户名和密码按实际填，在 sip_app_key.lua 中的 boo 按键函数发布的消息中填写要拨打的号码：sys.publish("SIP_APP_MAIN_DIAL_REQ", g_tag, targetnumber)，本例中 targetnumber = "100001"；

4、打开 MicroSIP/Linphone，输入 sip_app_main.lua 中 SIP_CONFIG 配置的 sip 服务器地址，端口，域名，注意：用户名和密码按实际填，不要与脚本中的用户名重复，本例中 MicroSIP/Linphone 填写的用户名为 100001；

5、烧录内核固件和 sip 相关 demo 成功后，自动开机运行；

6、运行程序，观察日志输出了解系统状态

场景一：4g 单网卡联网测试

SIP 和音频初始化：

参数含义：触发回调的事件
[2026-05-18 17:53:19.686][000000014.842] D/mobile NETIF_LINK_ON -> IP_READY
[2026-05-18 17:53:19.692][000000014.843] I/user.netdrv_4g.ip_ready_func IP_READY 10.16.253.118 255.255.255.255 0.0.0.0 nil
[2026-05-18 17:53:19.698][000000014.844] I/user.sip_app_main_task_func recv IP_READY 1 3
[2026-05-18 17:53:19.704][000000014.845] I/user.start 开始初始化 SIP，当前状态: STATE_INITING
[2026-05-18 17:53:19.710][000000014.846] I/user.exaudio.setup 使用ES8311 I2S模式初始化
[2026-05-18 17:53:19.717][000000014.846] I2C_MasterSetup 426:I2C0, Total 65 HCNT 22 LCNT 40
[2026-05-18 17:53:19.727][000000014.923] D/audio codec init es8311
[2026-05-18 17:53:20.272][000000015.480] I/user.exaudio.setup 声道数已设置为:1(1=单声道,2=双声道)
[2026-05-18 17:53:20.275][000000015.480] I/user.audio_drv exaudio.setup初始化成功
[2026-05-18 17:53:20.458][000000015.663] I/user.audio_drv 已设置通话音量为: 40
[2026-05-18 17:53:20.647][000000015.849] I/user.audio_drv 已设置麦克风音量为: 98

4g 联网注册 SIP，日志如下：

[2026-05-18 17:53:20.655][000000015.851] I/user.exsip init completed: 100000@180.152.6.34
[2026-05-18 17:53:20.708][000000015.910] I/user.exsip subscribed to IP_READY and IP_LOSE
[2026-05-18 17:53:20.710][000000015.911] I/user.exsip current adapter set: 1
[2026-05-18 17:53:20.751][000000015.917] I/user.sip SIP task uses locked adapter: nil transport: udp
[2026-05-18 17:53:20.756][000000015.918] I/user.sip locked_adapter initialized to default: 1
[2026-05-18 17:53:20.762][000000015.919] I/user.sip creating socket with adapter: 1 locked_adapter: 1
[2026-05-18 17:53:20.766][000000015.920] D/socket connect to 180.152.6.34,8910
[2026-05-18 17:53:20.771][000000015.921] I/user.exsip started adapter nil
[2026-05-18 17:53:20.779][000000015.922] I/user.dnsproxy 开始监听
[2026-05-18 17:53:20.781][000000015.922] D/mobile TIME_SYNC 0 tm 1779098000
[2026-05-18 17:53:20.787][000000015.926] I/user.sip send REGISTER 180.152.6.34 8910
[2026-05-18 17:53:20.797][000000015.928] I/user.exsip event: lifecycle action: online
[2026-05-18 17:53:20.802][000000015.929] I/user.exsip lifecycle: online
[2026-05-18 17:53:20.806][000000015.929] I/user.sip_callback STATE_INITING lifecycle online table: 0C7CD028 nil
[2026-05-18 17:53:20.812][000000015.930] I/user.sip_callback lifecycle event: online
[2026-05-18 17:53:20.818][000000015.930] I/user.sip_callback SIP 服务已在线，本地IP地址为： 10.16.253.118
[2026-05-18 17:53:20.832][000000016.028] I/user.sip resp 401 Unauthorized from 180.152.6.34 8910
[2026-05-18 17:53:20.834][000000016.037] I/user.sip send REGISTER (auth) cseq 2
[2026-05-18 17:53:20.843][000000016.039] I/user.exsip event: register action: challenge
[2026-05-18 17:53:20.849][000000016.040] I/user.sip_callback STATE_INITING register challenge table: 0C7C8CF0 nil
[2026-05-18 17:53:20.854][000000016.040] I/user.sip_callback 收到认证挑战，继续注册流程
[2026-05-18 17:53:20.910][000000016.113] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-18 17:53:20.912][000000016.116] I/user.sip next register in 570 sec
[2026-05-18 17:53:20.916][000000016.117] I/user.sip UDP OPTIONS keepalive started, interval 25000 ms
[2026-05-18 17:53:20.928][000000016.118] I/user.exsip event: register action: ok
[2026-05-18 17:53:20.933][000000016.119] I/user.sip_callback STATE_INITING register ok table: 0C7C72B8 nil
[2026-05-18 17:53:20.937][000000016.119] I/user.sip_callback 注册成功，有效期: 600 SIP响应头: table: 0C7C7C98
[2026-05-18 17:53:20.947][000000016.120] I/user.sip_callback STATE_INITING ready nil nil nil
[2026-05-18 17:53:20.952][000000016.120] I/user.sip_callback SIP 服务已就绪当前SIP状态: STATE_INITING
[2026-05-18 17:53:20.958][000000016.121] I/user.sip_app_main_task_func waitMsg STATE_INITING sip_callback MSG_READY nil

拨号测试

单击 boot 键拨号

日志如下：

[2026-05-18 17:59:09.708][000000364.908] I/user.sip_app_key 按下BOOT键
[2026-05-18 17:59:09.709][000000364.909] I/user.sip_app_main_task_func waitMsg STATE_READY sip_app_key MSG_DIAL 100001
[2026-05-18 17:59:09.710][000000364.909] I/user.exsip calling: 100001
[2026-05-18 17:59:09.818][000000365.014] I/user.sip_app_main_task_func after process STATE_DIALING
[2026-05-18 17:59:09.819][000000365.015] I/user.sip cmd call 100001
[2026-05-18 17:59:09.819][000000365.017] I/user.test ip 10.16.253.118
[2026-05-18 17:59:09.819][000000365.018] I/user.sip setting call timeout 30 seconds
[2026-05-18 17:59:09.820][000000365.021] I/user.sip send INVITE sip:100001@180.152.6.34
[2026-05-18 17:59:09.990][000000365.187] I/user.sip resp 407 Proxy Authentication Required from 180.152.6.34 8910
[2026-05-18 17:59:10.006][000000365.199] I/user.exsip event: call action: auth_retry
[2026-05-18 17:59:10.084][000000365.289] I/user.sip resp 100 Trying from 180.152.6.34 8910
[2026-05-18 17:59:10.114][000000365.316] I/user.sip resp 180 Ringing from 180.152.6.34 8910
[2026-05-18 17:59:10.114][000000365.319] I/user.sip invite provisional response 180 Ringing
[2026-05-18 17:59:10.115][000000365.320] I/user.exsip event: call action: ringing
[2026-05-18 17:59:10.130][000000365.321] I/user.sip_callback STATE_DIALING call ringing table: 0C79F470 nil
[2026-05-18 17:59:10.131][000000365.321] I/user.sip_callback call event sub_event= ringing
[2026-05-18 17:59:10.131][000000365.321] I/user.sip_callback 对方响铃中
[2026-05-18 17:59:11.004][000000366.209] I/user.sip send OPTIONS ping
[2026-05-18 17:59:11.127][000000366.321] I/user.sip resp 200 OK from 180.152.6.34 8910

对方接听，通话建立

[2026-05-18 17:59:18.394][000000373.600] I/user.sip resp 200 OK from 180.152.6.34 8910 [2026-05-18 17:59:18.410][000000373.603] I/user.sip parsing remote SDP v=0 o=FreeSWITCH 1779082298 1779082299 IN IP4 180.152.6.34 s=FreeSWITCH c=IN IP4 180.152.6.34 t=0 0 m=audio 16060 RTP/AVP 0 101 a=rtpmap:0 PCMU/8000 a=rtpmap:101 telephone-event/8000 a=fmtp:101 0-15 a=ptime:20

[2026-05-18 17:59:18.413][000000373.606] I/user.sip stopping all call timers, clearing timeout_timer
[2026-05-18 17:59:18.427][000000373.611] I/user.exsip event: media action: ready
[2026-05-18 17:59:18.432][000000373.612] I/user.exsip media ready 180.152.6.34 16060 PCMU
[2026-05-18 17:59:18.437][000000373.613] I/user.exsip start voip engine with adapter: 1 remote: 180.152.6.34:16060
[2026-05-18 17:59:18.444][000000373.614] I/user.exsip voip engine started 180.152.6.34:16060 codec=PCMU adapter nil
[2026-05-18 17:59:18.448][000000373.614] I/user.sip_callback STATE_DIALING media ready table: 0C79A6C0 nil
[2026-05-18 17:59:18.459][000000373.615] I/user.sip_callback 媒体通道就绪 180.152.6.34:16060
[2026-05-18 17:59:18.468][000000373.615] I/user.sip call established (outgoing)
[2026-05-18 17:59:18.480][000000373.616] I/user.exsip event: call action: established
[2026-05-18 17:59:18.485][000000373.616] I/user.sip_callback STATE_DIALING call connected table: 0C799FB0 nil
[2026-05-18 17:59:18.496][000000373.617] I/user.sip_callback call event sub_event= connected
[2026-05-18 17:59:18.501][000000373.617] I/user.sip_callback 通话已建立
[2026-05-18 17:59:18.513][000000373.619] I/user.sip_app_main_task_func waitMsg STATE_DIALING sip_callback MSG_CONNECTED nil
[2026-05-18 17:59:18.523][000000373.619] I/user.sip_app_main_task_func after process STATE_CONNECTED
[2026-05-18 17:59:18.528][000000373.620] I/user.sip_app_key 通话建立成功
[2026-05-18 17:59:18.533][000000373.621] D/voip voip task started
[2026-05-18 17:59:18.541][000000373.621] D/voip voip start event
[2026-05-18 17:59:18.546][000000373.622] E/voip voip config: remote=180.152.6.34:16060 codec=0 ptime=20
[2026-05-18 17:59:18.553][000000373.622] E/voip voio origin: samples=8000
[2026-05-18 17:59:18.558][000000373.622] E/voip voio frame: samples=160 bytes=320
[2026-05-18 17:59:18.562][000000373.629] I/voip aec ready frame=160 tail_ms=200 denoise=1
[2026-05-18 17:59:18.571][000000373.641] E/voip udp socket created and connected to 180.152.6.34:16060
[2026-05-18 17:59:18.575][000000373.641] luat_i2s_save_old_config 279:i2s1 save old param
[2026-05-18 17:59:18.579][000000373.658] E/voip audio started: multimedia_id=0 sample_rate=8000 backend=1
[2026-05-18 17:59:18.585][000000373.659] I/user.exsip voip state: started
[2026-05-18 17:59:18.589][000000373.660] I/user.sip_callback STATE_CONNECTED voip state started nil
[2026-05-18 17:59:18.600][000000373.660] I/user.sip_callback VoIP状态: started
[2026-05-18 17:59:18.611][000000373.661] I/voip voip running: 180.152.6.34:16060 codec=0 ptime=20
[2026-05-18 17:59:23.465][000000378.659] I/user.sip_callback STATE_CONNECTED voip stats table: 0C799D38 nil
[2026-05-18 17:59:23.472][000000378.660] I/user.sip_callback VoIP统计 - 发送: 250 接收: 237 丢失: 0

单击 PWRKEY 键，挂断通话

通话结束，结束原因为： local_hangup(我方主动挂断)，日志如下：

[2026-05-18 17:59:25.198][000000380.401] I/user.sip_app_key 按下POWERKEY键
[2026-05-18 17:59:25.200][000000380.403] I/user.sip_app_main_task_func waitMsg STATE_CONNECTED sip_app_key MSG_HANGUP nil
[2026-05-18 17:59:25.205][000000380.404] I/user.exsip hanging up
[2026-05-18 17:59:25.210][000000380.404] I/user.sip_app_main_task_func after process STATE_CONNECTED
[2026-05-18 17:59:25.215][000000380.405] I/user.sip cmd hangup
[2026-05-18 17:59:25.220][000000380.406] I/user.sip BYE uri sip:100001@180.152.6.34:8910;transport=udp from sip:100000@180.152.6.34;tag=4c76f661cb70b652 to sip:100001@180.152.6.34;tag=y9KBKpFZKr56K routes 0
[2026-05-18 17:59:25.225][000000380.409] I/user.sip send BYE
[2026-05-18 17:59:25.293][000000380.486] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-18 17:59:25.309][000000380.489] I/user.exsip event: media action: stop
[2026-05-18 17:59:25.316][000000380.489] I/user.exsip voip engine stopping
[2026-05-18 17:59:25.321][000000380.490] I/user.sip_callback STATE_CONNECTED media stop table: 0C798400 nil
[2026-05-18 17:59:25.336][000000380.490] I/user.sip_callback 媒体通道已关闭，关闭原因： local_hangup
[2026-05-18 17:59:25.344][000000380.491] I/user.sip call cleared
[2026-05-18 17:59:25.353][000000380.492] I/user.exsip event: call action: ended
[2026-05-18 17:59:25.358][000000380.492] I/user.exsip voip engine stopping
[2026-05-18 17:59:25.363][000000380.493] I/user.sip_callback STATE_CONNECTED call ended table: 0C798358 nil
[2026-05-18 17:59:25.373][000000380.493] I/user.sip_callback call event sub_event= ended
[2026-05-18 17:59:25.386][000000380.494] I/user.sip_callback 通话已结束，结束原因为： local_hangup 通话对象： table: 0C7A64F0
[2026-05-18 17:59:25.395][000000380.495] I/user.sip_app_main_task_func waitMsg STATE_CONNECTED sip_callback MSG_DISCONNECTED local_hangup
[2026-05-18 17:59:25.409][000000380.495] I/user.sip_app_main_task_func after process STATE_READY
[2026-05-18 17:59:25.416][000000380.496] I/user.sip_app_key 通话已断开
[2026-05-18 17:59:25.422][000000380.503] D/voip voip stop event
[2026-05-18 17:59:25.424][000000380.504] luat_i2s_load_old_config 297:i2s0 load old param
[2026-05-18 17:59:25.428][000000380.506] I/user.exsip voip state: stopped
[2026-05-18 17:59:25.433][000000380.508] I/user.sip_callback STATE_READY voip state stopped nil
[2026-05-18 17:59:25.442][000000380.508] I/user.sip_callback VoIP状态: stopped
[2026-05-18 17:59:25.456][000000380.509] I/user.sip_app_main_task_func waitMsg STATE_READY sip_callback MSG_PLAY_HUNGUP local_hangup
[2026-05-18 17:59:25.470][000000380.510] I/user.sip_app_main_task_func after process STATE_READY

来电接听测试

收到来电

[2026-05-19 11:39:42.120][000000051.648] I/user.sip req INVITE from 180.152.6.34 8910
[2026-05-19 11:39:42.122][000000051.650] I/user.sip parsing remote SDP v=0
o=FreeSWITCH 1779145202 1779145203 IN IP4 180.152.6.34
s=FreeSWITCH
c=IN IP4 180.152.6.34
t=0 0
m=audio 16780 RTP/AVP 8 0 101
a=rtpmap:8 PCMA/8000
a=rtpmap:0 PCMU/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
a=ptime:20

[2026-05-19 11:39:42.134][000000051.659] I/user.exsip event: call action: incoming
[2026-05-19 11:39:42.140][000000051.660] I/user.sip_callback STATE_READY call incoming table: 0C7BE0F0 nil
[2026-05-19 11:39:42.145][000000051.660] I/user.sip_callback call event sub_event= incoming
[2026-05-19 11:39:42.153][000000051.660] I/user.sip_callback 来电: "Extension 100001" sip:100001@180.152.6.34;tag=BQZ8cmgc36Q7r sip:100000@10.18.113.64:5062;received=36.7.99.190:5062 sip:100000@10.18.113.64:5062;received=36.7.99.190:5062;tag=1a4d4e84c8751186
[2026-05-19 11:39:42.169][000000051.662] I/user.exsip event: call action: ringing
[2026-05-19 11:39:42.174][000000051.662] I/user.sip_callback STATE_READY call ringing table: 0C7BDDA8 nil
[2026-05-19 11:39:42.179][000000051.663] I/user.sip_callback call event sub_event= ringing
[2026-05-19 11:39:42.187][000000051.663] I/user.sip_callback 对方响铃中
[2026-05-19 11:39:42.205][000000051.664] I/user.exsip event: media action: offer
[2026-05-19 11:39:42.212][000000051.665] I/user.sip_app_main_task_func waitMsg STATE_READY sip_callback MSG_INCOMING "Extension 100001" sip:100001@180.152.6.34;tag=BQZ8cmgc36Q7r
[2026-05-19 11:39:42.243][000000051.771] I/user.sip_app_main_task_func after process STATE_INCOMING
[2026-05-19 11:39:42.243][000000051.877] I/user.sip_app_key 呼入中，来电号码： 100001

单击 boot 键接听来电

[2026-05-19 11:39:51.669][000000061.206] I/user.sip_app_key 按下BOOT键
[2026-05-19 11:39:51.671][000000061.206] I/user.sip_app_key 呼入中，接听
[2026-05-19 11:39:51.677][000000061.207] I/user.sip_app_main_task_func waitMsg STATE_INCOMING sip_app_key MSG_ACCEPT nil
[2026-05-19 11:39:51.682][000000061.208] I/user.exsip answering call
[2026-05-19 11:39:51.689][000000061.208] I/user.sip_app_main_task_func after process STATE_INCOMING
[2026-05-19 11:39:51.695][000000061.209] I/user.sip cmd answer
[2026-05-19 11:39:51.701][000000061.210] I/user.test ip 10.18.113.64
[2026-05-19 11:39:51.706][000000061.213] I/user.sip answer 200 OK
[2026-05-19 11:39:51.840][000000061.366] I/user.sip req ACK from 180.152.6.34 8910
[2026-05-19 11:39:51.854][000000061.369] I/user.exsip event: media action: ready
[2026-05-19 11:39:51.861][000000061.369] I/user.exsip media ready 180.152.6.34 16780 PCMU
[2026-05-19 11:39:51.867][000000061.370] I/user.exsip start voip engine with adapter: 1 remote: 180.152.6.34:16780
[2026-05-19 11:39:51.873][000000061.371] I/user.exsip voip engine started 180.152.6.34:16780 codec=PCMU adapter nil
[2026-05-19 11:39:51.881][000000061.371] I/user.sip_callback STATE_INCOMING media ready table: 0C7BB4C0 nil
[2026-05-19 11:39:51.891][000000061.372] I/user.sip_callback 媒体通道就绪 180.152.6.34:16780
[2026-05-19 11:39:51.904][000000061.372] I/user.sip call established (incoming)
[2026-05-19 11:39:51.916][000000061.373] I/user.exsip event: call action: established
[2026-05-19 11:39:51.922][000000061.374] I/user.sip_callback STATE_INCOMING call connected table: 0C7BAC50 nil
[2026-05-19 11:39:51.930][000000061.374] I/user.sip_callback call event sub_event= connected
[2026-05-19 11:39:51.943][000000061.375] I/user.sip_callback 通话已建立
[2026-05-19 11:39:51.957][000000061.376] I/user.sip_app_main_task_func waitMsg STATE_INCOMING sip_callback MSG_CONNECTED nil
[2026-05-19 11:39:51.968][000000061.376] I/user.sip_app_main_task_func after process STATE_CONNECTED
[2026-05-19 11:39:51.972][000000061.377] I/user.sip_app_key 通话建立成功
[2026-05-19 11:39:51.979][000000061.378] D/voip voip task started
[2026-05-19 11:39:51.984][000000061.379] D/voip voip start event
[2026-05-19 11:39:51.990][000000061.379] E/voip voip config: remote=180.152.6.34:16780 codec=0 ptime=20
[2026-05-19 11:39:51.998][000000061.379] E/voip voio origin: samples=8000
[2026-05-19 11:39:52.003][000000061.380] E/voip voio frame: samples=160 bytes=320
[2026-05-19 11:39:52.010][000000061.386] I/voip aec ready frame=160 tail_ms=200 denoise=1
[2026-05-19 11:39:52.018][000000061.403] E/voip udp socket created and connected to 180.152.6.34:16780
[2026-05-19 11:39:52.021][000000061.404] luat_i2s_save_old_config 279:i2s1 save old param
[2026-05-19 11:39:52.029][000000061.420] E/voip audio started: multimedia_id=0 sample_rate=8000 backend=1
[2026-05-19 11:39:52.034][000000061.421] I/user.exsip voip state: started
[2026-05-19 11:39:52.039][000000061.422] I/user.sip_callback STATE_CONNECTED voip state started nil
[2026-05-19 11:39:52.054][000000061.422] I/user.sip_callback VoIP状态: started
[2026-05-19 11:39:52.063][000000061.423] I/voip voip running: 180.152.6.34:16780 codec=0 ptime=20
[2026-05-19 11:39:54.375][000000063.912] W/voip_jb jb resync: expected_seq 36286 -> 36232 (pending 4)
[2026-05-19 11:39:54.438][000000063.971] W/voip_jb jb resync: expected_seq 36235 -> 36260 (pending 7)
[2026-05-19 11:39:54.501][000000064.031] W/voip_jb jb resync: expected_seq 36263 -> 36276 (pending 9)
[2026-05-19 11:39:54.624][000000064.152] W/voip_jb jb resync: expected_seq 36282 -> 36284 (pending 14)
[2026-05-19 11:39:56.563][000000066.094] I/user.sip send OPTIONS ping
[2026-05-19 11:39:56.640][000000066.167] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-19 11:39:56.889][000000066.421] I/user.sip_callback STATE_CONNECTED voip stats table: 0C7B8E30 nil
[2026-05-19 11:39:56.898][000000066.422] I/user.sip_callback VoIP统计 - 发送: 250 接收: 230 丢失: 0
[2026-05-19 11:40:01.887][000000071.421] I/user.sip_callback STATE_CONNECTED voip stats table: 0C7B8738 nil
[2026-05-19 11:40:01.895][000000071.422] I/user.sip_callback VoIP统计 - 发送: 500 接收: 473 丢失: 0

单击 PWRKEY 键，挂断通话

通话结束，结束原因为： local_hangup(我方主动挂断)，日志如下：

[2026-05-19 11:40:02.334][000000071.870] I/user.sip_app_key 按下POWERKEY键
[2026-05-19 11:40:02.336][000000071.872] I/user.sip_app_main_task_func waitMsg STATE_CONNECTED sip_app_key MSG_HANGUP nil
[2026-05-19 11:40:02.342][000000071.872] I/user.exsip hanging up
[2026-05-19 11:40:02.348][000000071.873] I/user.sip_app_main_task_func after process STATE_CONNECTED
[2026-05-19 11:40:02.355][000000071.874] I/user.sip cmd hangup
[2026-05-19 11:40:02.361][000000071.875] I/user.sip BYE uri sip:mod_sofia@180.152.6.34:8910 from sip:100000@10.18.113.64:5062;received=36.7.99.190:5062;tag=1a4d4e84c8751186 to "Extension 100001" sip:100001@180.152.6.34;tag=BQZ8cmgc36Q7r routes 0
[2026-05-19 11:40:02.368][000000071.878] I/user.sip send BYE
[2026-05-19 11:40:02.442][000000071.966] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-19 11:40:02.450][000000071.969] I/user.exsip event: media action: stop
[2026-05-19 11:40:02.457][000000071.969] I/user.exsip voip engine stopping
[2026-05-19 11:40:02.462][000000071.970] I/user.sip_callback STATE_CONNECTED media stop table: 0C7B6D48 nil
[2026-05-19 11:40:02.483][000000071.970] I/user.sip_callback 媒体通道已关闭，关闭原因： local_hangup
[2026-05-19 11:40:02.510][000000071.971] I/user.sip call cleared
[2026-05-19 11:40:02.525][000000071.971] I/user.exsip event: call action: ended
[2026-05-19 11:40:02.531][000000071.972] I/user.exsip voip engine stopping
[2026-05-19 11:40:02.542][000000071.972] I/user.sip_callback STATE_CONNECTED call ended table: 0C7B6C58 nil
[2026-05-19 11:40:02.556][000000071.973] I/user.sip_callback call event sub_event= ended
[2026-05-19 11:40:02.570][000000071.973] I/user.sip_callback 通话已结束，结束原因为： local_hangup 通话对象： table: 0C7BD440
[2026-05-19 11:40:02.585][000000071.974] I/user.sip_app_main_task_func waitMsg STATE_CONNECTED sip_callback MSG_DISCONNECTED local_hangup
[2026-05-19 11:40:02.601][000000071.975] I/user.sip_app_main_task_func after process STATE_READY
[2026-05-19 11:40:02.603][000000071.976] I/user.sip_app_key 通话已断开
[2026-05-19 11:40:02.608][000000071.985] D/voip voip stop event
[2026-05-19 11:40:02.615][000000071.986] luat_i2s_load_old_config 297:i2s0 load old param
[2026-05-19 11:40:02.623][000000071.988] I/user.exsip voip state: stopped
[2026-05-19 11:40:02.628][000000071.988] I/user.sip_callback STATE_READY voip state stopped nil
[2026-05-19 11:40:02.644][000000071.989] I/user.sip_callback VoIP状态: stopped
[2026-05-19 11:40:02.655][000000071.990] I/user.sip_app_main_task_func waitMsg STATE_READY sip_callback MSG_PLAY_HUNGUP local_hangup

场景二：以太网单网卡联网拨号测试

SIP 和音频初始化：

[2026-05-18 18:21:41.397][000000466.258] D/net network ready 4, setup dns server
[2026-05-18 18:21:41.408][000000466.259] D/netdrv IP_READY 4 192.168.1.100
[2026-05-18 18:21:41.411][000000466.260] D/net 设置DNS服务器 id 4 index 0 ip 223.5.5.5
[2026-05-18 18:21:41.417][000000466.260] D/net 设置DNS服务器 id 4 index 1 ip 114.114.114.114
[2026-05-18 18:21:41.420][000000466.261] I/user.netdrv_eth_spi.ip_ready_func IP_READY 192.168.1.100 255.255.255.0 192.168.1.1 nil
[2026-05-18 18:21:41.426][000000466.262] I/user.sip_app_main_task_func recv IP_READY 4 4
[2026-05-18 18:21:41.432][000000466.262] I/user.start 开始初始化 SIP，当前状态: STATE_INITING
[2026-05-18 18:21:41.436][000000466.263] I/user.exaudio.setup 使用ES8311 I2S模式初始化
[2026-05-18 18:21:41.441][000000466.264] I2C_MasterSetup 426:I2C0, Total 65 HCNT 22 LCNT 40
[2026-05-18 18:21:41.446][000000466.340] D/audio codec init es8311
[2026-05-18 18:21:41.974][000000466.896] I/user.exaudio.setup 声道数已设置为:1(1=单声道,2=双声道)
[2026-05-18 18:21:41.976][000000466.896] I/user.audio_drv exaudio.setup初始化成功
[2026-05-18 18:21:42.158][000000467.080] I/user.audio_drv 已设置通话音量为: 40
[2026-05-18 18:21:42.329][000000467.264] I/user.audio_drv 已设置麦克风音量为: 98

以太网联网注册 SIP，日志如下：

[2026-05-18 18:21:42.394][000000467.326] I/user.exsip current adapter set: 4
[2026-05-18 18:21:42.435][000000467.331] I/user.sip SIP task uses locked adapter: nil transport: udp
[2026-05-18 18:21:42.441][000000467.331] I/user.sip locked_adapter initialized to default: 4
[2026-05-18 18:21:42.446][000000467.333] I/user.sip creating socket with adapter: 4 locked_adapter: 4
[2026-05-18 18:21:42.450][000000467.333] D/socket connect to 180.152.6.34,8910
[2026-05-18 18:21:42.456][000000467.334] D/net adapter 4 connect 180.152.6.34:8910 UDP
[2026-05-18 18:21:42.459][000000467.335] I/user.exsip started adapter nil
[2026-05-18 18:21:42.464][000000467.335] I/user.dnsproxy 开始监听
[2026-05-18 18:21:42.468][000000467.340] I/user.sip send REGISTER 180.152.6.34 8910
[2026-05-18 18:21:42.478][000000467.341] I/user.exsip event: lifecycle action: online
[2026-05-18 18:21:42.483][000000467.342] I/user.exsip lifecycle: online
[2026-05-18 18:21:42.488][000000467.342] I/user.sip_callback STATE_INITING lifecycle online table: 0C7ED110 nil
[2026-05-18 18:21:42.493][000000467.343] I/user.sip_callback lifecycle event: online
[2026-05-18 18:21:42.497][000000467.343] I/user.sip_callback SIP 服务已在线，本地IP地址为： 192.168.1.100
[2026-05-18 18:21:42.508][000000467.361] I/user.sip resp 401 Unauthorized from 180.152.6.34 8910
[2026-05-18 18:21:42.514][000000467.368] I/user.sip send REGISTER (auth) cseq 2
[2026-05-18 18:21:42.522][000000467.369] I/user.exsip event: register action: challenge
[2026-05-18 18:21:42.526][000000467.370] I/user.sip_callback STATE_INITING register challenge table: 0C7D3E80 nil
[2026-05-18 18:21:42.531][000000467.370] I/user.sip_callback 收到认证挑战，继续注册流程
[2026-05-18 18:21:42.541][000000467.384] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-18 18:21:42.548][000000467.386] I/user.sip next register in 570 sec
[2026-05-18 18:21:42.550][000000467.387] I/user.sip UDP OPTIONS keepalive started, interval 25000 ms
[2026-05-18 18:21:42.560][000000467.388] I/user.exsip event: register action: ok
[2026-05-18 18:21:42.565][000000467.388] I/user.sip_callback STATE_INITING register ok table: 0C7D2418 nil
[2026-05-18 18:21:42.570][000000467.389] I/user.sip_callback 注册成功，有效期: 600 SIP响应头: table: 0C7D3B08
[2026-05-18 18:21:42.575][000000467.389] I/user.sip_callback STATE_INITING ready nil nil nil
[2026-05-18 18:21:42.582][000000467.389] I/user.sip_callback SIP 服务已就绪当前SIP状态: STATE_INITING
[2026-05-18 18:21:42.591][000000467.390] I/user.sip_app_main_task_func waitMsg STATE_INITING sip_callback MSG_READY nil

拨号测试

单击 boot 键拨号

[2026-05-18 18:26:33.781][000000758.708] I/user.sip_app_key 按下BOOT键
[2026-05-18 18:26:33.782][000000758.710] I/user.sip_app_main_task_func waitMsg STATE_READY sip_app_key MSG_DIAL 100001
[2026-05-18 18:26:33.782][000000758.711] I/user.exsip calling: 100001
[2026-05-18 18:26:33.891][000000758.815] I/user.sip_app_main_task_func after process STATE_DIALING
[2026-05-18 18:26:33.893][000000758.816] I/user.sip cmd call 100001
[2026-05-18 18:26:33.895][000000758.818] I/user.test ip 192.168.1.100
[2026-05-18 18:26:33.897][000000758.820] I/user.sip setting call timeout 30 seconds
[2026-05-18 18:26:33.906][000000758.823] I/user.sip send INVITE sip:100001@180.152.6.34
[2026-05-18 18:26:33.908][000000758.837] I/user.sip resp 407 Proxy Authentication Required from 180.152.6.34 8910
[2026-05-18 18:26:33.923][000000758.848] I/user.exsip event: call action: auth_retry
[2026-05-18 18:26:33.952][000000758.877] I/user.sip resp 100 Trying from 180.152.6.34 8910
[2026-05-18 18:26:33.983][000000758.905] I/user.sip resp 180 Ringing from 180.152.6.34 8910
[2026-05-18 18:26:33.984][000000758.907] I/user.sip invite provisional response 180 Ringing
[2026-05-18 18:26:33.984][000000758.908] I/user.exsip event: call action: ringing
[2026-05-18 18:26:33.985][000000758.909] I/user.sip_callback STATE_DIALING call ringing table: 0C7A3E20 nil
[2026-05-18 18:26:33.985][000000758.909] I/user.sip_callback call event sub_event= ringing
[2026-05-18 18:26:33.985][000000758.909] I/user.sip_callback 对方响铃中

对方接听，通话建立

[2026-05-18 18:26:38.089][000000763.012] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-18 18:26:38.093][000000763.015] I/user.sip parsing remote SDP v=0
o=FreeSWITCH 1779084091 1779084092 IN IP4 180.152.6.34
s=FreeSWITCH
c=IN IP4 180.152.6.34
t=0 0
m=audio 15908 RTP/AVP 0 101
a=rtpmap:0 PCMU/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
a=ptime:20

[2026-05-18 18:26:38.103][000000763.017] I/user.sip stopping all call timers, clearing timeout_timer
[2026-05-18 18:26:38.131][000000763.022] I/user.exsip event: media action: ready
[2026-05-18 18:26:38.136][000000763.022] I/user.exsip media ready 180.152.6.34 15908 PCMU
[2026-05-18 18:26:38.147][000000763.023] I/user.exsip start voip engine with adapter: 4 remote: 180.152.6.34:15908
[2026-05-18 18:26:38.157][000000763.024] I/user.exsip voip engine started 180.152.6.34:15908 codec=PCMU adapter nil
[2026-05-18 18:26:38.164][000000763.025] I/user.sip_callback STATE_DIALING media ready table: 0C7A11C8 nil
[2026-05-18 18:26:38.174][000000763.025] I/user.sip_callback 媒体通道就绪 180.152.6.34:15908
[2026-05-18 18:26:38.185][000000763.025] I/user.sip call established (outgoing)
[2026-05-18 18:26:38.200][000000763.026] I/user.exsip event: call action: established
[2026-05-18 18:26:38.209][000000763.027] I/user.sip_callback STATE_DIALING call connected table: 0C7A0AB8 nil
[2026-05-18 18:26:38.217][000000763.027] I/user.sip_callback call event sub_event= connected
[2026-05-18 18:26:38.231][000000763.027] I/user.sip_callback 通话已建立
[2026-05-18 18:26:38.238][000000763.028] I/user.sip_app_main_task_func waitMsg STATE_DIALING sip_callback MSG_CONNECTED nil
[2026-05-18 18:26:38.255][000000763.029] I/user.sip_app_main_task_func after process STATE_CONNECTED
[2026-05-18 18:26:38.259][000000763.029] I/user.sip_app_key 通话建立成功
[2026-05-18 18:26:38.270][000000763.030] D/voip voip task started
[2026-05-18 18:26:38.276][000000763.031] D/voip voip start event
[2026-05-18 18:26:38.281][000000763.031] E/voip voip config: remote=180.152.6.34:15908 codec=0 ptime=20
[2026-05-18 18:26:38.290][000000763.032] E/voip voio origin: samples=8000
[2026-05-18 18:26:38.294][000000763.032] E/voip voio frame: samples=160 bytes=320
[2026-05-18 18:26:38.299][000000763.038] I/voip aec ready frame=160 tail_ms=200 denoise=1
[2026-05-18 18:26:38.309][000000763.040] D/net adapter 4 connect 180.152.6.34:15908 UDP
[2026-05-18 18:26:38.313][000000763.040] E/voip udp socket created and connected to 180.152.6.34:15908
[2026-05-18 18:26:38.324][000000763.041] luat_i2s_save_old_config 279:i2s1 save old param
[2026-05-18 18:26:38.328][000000763.058] E/voip audio started: multimedia_id=0 sample_rate=8000 backend=1
[2026-05-18 18:26:38.333][000000763.059] I/user.exsip voip state: started
[2026-05-18 18:26:38.342][000000763.059] I/user.sip_callback STATE_CONNECTED voip state started nil
[2026-05-18 18:26:38.349][000000763.060] I/user.sip_callback VoIP状态: started
[2026-05-18 18:26:38.359][000000763.060] I/voip voip running: 180.152.6.34:15908 codec=0 ptime=20
[2026-05-18 18:26:42.517][000000767.443] I/user.sip send OPTIONS ping
[2026-05-18 18:26:42.531][000000767.455] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-18 18:26:42.999][000000767.928] W/voip_jb jb resync: expected_seq 60769 -> 60765 (pending 2)
[2026-05-18 18:26:43.138][000000768.058] I/user.sip_callback STATE_CONNECTED voip stats table: 0C79EB18 nil
[2026-05-18 18:26:43.148][000000768.059] I/user.sip_callback VoIP统计 - 发送: 250 接收: 233 丢失: 0

单击 PWRKEY 键，挂断通话

结束原因为： local_hangup(我方主动挂断)，日志如下：

[2026-05-18 18:26:46.183][000000771.100] I/user.sip_app_key 按下POWERKEY键
[2026-05-18 18:26:46.186][000000771.101] I/user.sip_app_main_task_func waitMsg STATE_CONNECTED sip_app_key MSG_HANGUP nil
[2026-05-18 18:26:46.192][000000771.101] I/user.exsip hanging up
[2026-05-18 18:26:46.196][000000771.102] I/user.sip_app_main_task_func after process STATE_CONNECTED
[2026-05-18 18:26:46.201][000000771.103] I/user.sip cmd hangup
[2026-05-18 18:26:46.205][000000771.103] I/user.sip BYE uri sip:100001@180.152.6.34:8910;transport=udp from sip:100000@180.152.6.34;tag=c054d234b05e06b9 to sip:100001@180.152.6.34;tag=Ue2BZ9amjSQpm routes 0
[2026-05-18 18:26:46.211][000000771.106] I/user.sip send BYE
[2026-05-18 18:26:46.215][000000771.131] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-18 18:26:46.227][000000771.133] I/user.exsip event: media action: stop
[2026-05-18 18:26:46.231][000000771.133] I/user.exsip voip engine stopping
[2026-05-18 18:26:46.238][000000771.134] I/user.sip_callback STATE_CONNECTED media stop table: 0C79CD38 nil
[2026-05-18 18:26:46.262][000000771.134] I/user.sip_callback 媒体通道已关闭，关闭原因： local_hangup
[2026-05-18 18:26:46.284][000000771.135] I/user.sip call cleared
[2026-05-18 18:26:46.301][000000771.135] I/user.exsip event: call action: ended
[2026-05-18 18:26:46.305][000000771.136] I/user.exsip voip engine stopping
[2026-05-18 18:26:46.312][000000771.136] I/user.sip_callback STATE_CONNECTED call ended table: 0C79CC90 nil
[2026-05-18 18:26:46.325][000000771.137] I/user.sip_callback call event sub_event= ended
[2026-05-18 18:26:46.338][000000771.137] I/user.sip_callback 通话已结束，结束原因为： local_hangup 通话对象： table: 0C7AAEB0
[2026-05-18 18:26:46.351][000000771.138] I/user.sip_app_main_task_func waitMsg STATE_CONNECTED sip_callback MSG_DISCONNECTED local_hangup
[2026-05-18 18:26:46.361][000000771.139] I/user.sip_app_main_task_func after process STATE_READY
[2026-05-18 18:26:46.365][000000771.139] I/user.sip_app_key 通话已断开
[2026-05-18 18:26:46.370][000000771.140] D/voip voip stop event
[2026-05-18 18:26:46.376][000000771.141] luat_i2s_load_old_config 297:i2s0 load old param
[2026-05-18 18:26:46.380][000000771.143] I/user.exsip voip state: stopped
[2026-05-18 18:26:46.385][000000771.144] I/user.sip_callback STATE_READY voip state stopped nil
[2026-05-18 18:26:46.396][000000771.144] I/user.sip_callback VoIP状态: stopped
[2026-05-18 18:26:46.409][000000771.145] I/user.sip_app_main_task_func waitMsg STATE_READY sip_callback MSG_PLAY_HUNGUP local_hangup

来电接听测试

收到来电

[2026-05-19 11:56:03.011][000000016.468] I/user.sip req INVITE from 180.152.6.34 8910
[2026-05-19 11:56:03.013][000000016.469] I/user.sip parsing remote SDP v=0
o=FreeSWITCH 1779147004 1779147005 IN IP4 180.152.6.34
s=FreeSWITCH
c=IN IP4 180.152.6.34
t=0 0
m=audio 15960 RTP/AVP 8 0 101
a=rtpmap:8 PCMA/8000
a=rtpmap:0 PCMU/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
a=ptime:20

[2026-05-19 11:56:03.016][000000016.477] I/user.exsip event: call action: incoming
[2026-05-19 11:56:03.017][000000016.478] I/user.sip_callback STATE_READY call incoming table: 0C7BFD70 nil
[2026-05-19 11:56:03.019][000000016.478] I/user.sip_callback call event sub_event= incoming
[2026-05-19 11:56:03.021][000000016.478] I/user.sip_callback 来电: "Extension 100001" sip:100001@180.152.6.34;tag=3my5KXDQFH40K sip:100000@192.168.1.100:5062;received=180.171.81.183:46336 sip:100000@192.168.1.100:5062;received=180.171.81.183:46336;tag=01ab8f8afea177a0
[2026-05-19 11:56:03.024][000000016.479] I/user.exsip event: call action: ringing
[2026-05-19 11:56:03.025][000000016.480] I/user.sip_callback STATE_READY call ringing table: 0C7BFA28 nil
[2026-05-19 11:56:03.027][000000016.480] I/user.sip_callback call event sub_event= ringing
[2026-05-19 11:56:03.030][000000016.481] I/user.sip_callback 对方响铃中
[2026-05-19 11:56:03.033][000000016.481] I/user.exsip event: media action: offer
[2026-05-19 11:56:03.034][000000016.482] I/user.sip_app_main_task_func waitMsg STATE_READY sip_callback MSG_INCOMING "Extension 100001" sip:100001@180.152.6.34;tag=3my5KXDQFH40K
[2026-05-19 11:56:03.120][000000016.584] I/user.sip_app_main_task_func after process STATE_INCOMING
[2026-05-19 11:56:03.121][000000016.585] I/user.sip_app_key 呼入中，来电号码： 100001

单击 boot 键接听来电

[2026-05-19 11:56:10.052][000000023.515] I/user.sip_app_key 按下BOOT键
[2026-05-19 11:56:10.054][000000023.516] I/user.sip_app_key 呼入中，接听
[2026-05-19 11:56:10.054][000000023.517] I/user.sip_app_main_task_func waitMsg STATE_INCOMING sip_app_key MSG_ACCEPT nil
[2026-05-19 11:56:10.055][000000023.517] I/user.exsip answering call
[2026-05-19 11:56:10.056][000000023.518] I/user.sip_app_main_task_func after process STATE_INCOMING
[2026-05-19 11:56:10.056][000000023.518] I/user.sip cmd answer
[2026-05-19 11:56:10.057][000000023.520] I/user.test ip 192.168.1.100
[2026-05-19 11:56:10.067][000000023.523] I/user.sip answer 200 OK
[2026-05-19 11:56:10.082][000000023.537] I/user.sip req ACK from 180.152.6.34 8910
[2026-05-19 11:56:10.085][000000023.539] I/user.exsip event: media action: ready
[2026-05-19 11:56:10.086][000000023.540] I/user.exsip media ready 180.152.6.34 15960 PCMU
[2026-05-19 11:56:10.086][000000023.540] I/user.exsip start voip engine with adapter: 4 remote: 180.152.6.34:15960
[2026-05-19 11:56:10.094][000000023.541] I/user.exsip voip engine started 180.152.6.34:15960 codec=PCMU adapter nil
[2026-05-19 11:56:10.102][000000023.542] I/user.sip_callback STATE_INCOMING media ready table: 0C7BD200 nil
[2026-05-19 11:56:10.109][000000023.542] I/user.sip_callback 媒体通道就绪 180.152.6.34:15960
[2026-05-19 11:56:10.121][000000023.543] I/user.sip call established (incoming)
[2026-05-19 11:56:10.136][000000023.543] I/user.exsip event: call action: established
[2026-05-19 11:56:10.143][000000023.544] I/user.sip_callback STATE_INCOMING call connected table: 0C7BC990 nil
[2026-05-19 11:56:10.150][000000023.544] I/user.sip_callback call event sub_event= connected
[2026-05-19 11:56:10.156][000000023.544] I/user.sip_callback 通话已建立
[2026-05-19 11:56:10.163][000000023.545] I/user.sip_app_main_task_func waitMsg STATE_INCOMING sip_callback MSG_CONNECTED nil
[2026-05-19 11:56:10.170][000000023.546] I/user.sip_app_main_task_func after process STATE_CONNECTED
[2026-05-19 11:56:10.177][000000023.547] I/user.sip_app_key 通话建立成功
[2026-05-19 11:56:10.185][000000023.547] D/voip voip task started
[2026-05-19 11:56:10.192][000000023.548] D/voip voip start event
[2026-05-19 11:56:10.203][000000023.548] E/voip voip config: remote=180.152.6.34:15960 codec=0 ptime=20
[2026-05-19 11:56:10.210][000000023.548] E/voip voio origin: samples=8000
[2026-05-19 11:56:10.216][000000023.549] E/voip voio frame: samples=160 bytes=320
[2026-05-19 11:56:10.224][000000023.555] I/voip aec ready frame=160 tail_ms=200 denoise=1
[2026-05-19 11:56:10.230][000000023.556] D/net adapter 4 connect 180.152.6.34:15960 UDP
[2026-05-19 11:56:10.232][000000023.557] E/voip udp socket created and connected to 180.152.6.34:15960
[2026-05-19 11:56:10.239][000000023.558] luat_i2s_save_old_config 279:i2s1 save old param
[2026-05-19 11:56:10.244][000000023.574] E/voip audio started: multimedia_id=0 sample_rate=8000 backend=1
[2026-05-19 11:56:10.251][000000023.575] I/user.exsip voip state: started
[2026-05-19 11:56:10.263][000000023.575] I/user.sip_callback STATE_CONNECTED voip state started nil
[2026-05-19 11:56:10.272][000000023.576] I/user.sip_callback VoIP状态: started
[2026-05-19 11:56:10.278][000000023.576] I/voip voip running: 180.152.6.34:15960 codec=0 ptime=20
[2026-05-19 11:56:12.599][000000026.065] W/voip_jb jb resync: expected_seq 58736 -> 58681 (pending 3)
[2026-05-19 11:56:12.663][000000026.125] W/voip_jb jb resync: expected_seq 58684 -> 58700 (pending 5)
[2026-05-19 11:56:12.725][000000026.186] W/voip_jb jb resync: expected_seq 58703 -> 58734 (pending 7)
[2026-05-19 11:56:15.030][000000028.496] I/user.sip send OPTIONS ping
[2026-05-19 11:56:15.046][000000028.508] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-19 11:56:15.107][000000028.575] I/user.sip_callback STATE_CONNECTED voip stats table: 0C7BA828 nil
[2026-05-19 11:56:15.114][000000028.575] I/user.sip_callback VoIP统计 - 发送: 250 接收: 234 丢失: 0

单击 PWRKEY 键，挂断通话

结束原因为： local_hangup(我方主动挂断)，日志如下：

[2026-05-19 11:56:18.004][000000031.469] I/user.sip_app_key 按下POWERKEY键
[2026-05-19 11:56:18.007][000000031.470] I/user.sip_app_main_task_func waitMsg STATE_CONNECTED sip_app_key MSG_HANGUP nil
[2026-05-19 11:56:18.013][000000031.471] I/user.exsip hanging up
[2026-05-19 11:56:18.018][000000031.471] I/user.sip_app_main_task_func after process STATE_CONNECTED
[2026-05-19 11:56:18.024][000000031.472] I/user.sip cmd hangup
[2026-05-19 11:56:18.033][000000031.473] I/user.sip BYE uri sip:mod_sofia@180.152.6.34:8910 from sip:100000@192.168.1.100:5062;received=180.171.81.183:46336;tag=01ab8f8afea177a0 to "Extension 100001" sip:100001@180.152.6.34;tag=3my5KXDQFH40K routes 0 [2026-05-19 11:56:18.044][000000031.475] I/user.sip send BYE
[2026-05-19 11:56:18.047][000000031.497] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-19 11:56:18.062][000000031.500] I/user.exsip event: media action: stop
[2026-05-19 11:56:18.072][000000031.500] I/user.exsip voip engine stopping
[2026-05-19 11:56:18.080][000000031.501] I/user.sip_callback STATE_CONNECTED media stop table: 0C7B8860 nil
[2026-05-19 11:56:18.097][000000031.501] I/user.sip_callback 媒体通道已关闭，关闭原因： local_hangup
[2026-05-19 11:56:18.117][000000031.501] I/user.sip call cleared
[2026-05-19 11:56:18.133][000000031.502] I/user.exsip event: call action: ended
[2026-05-19 11:56:18.139][000000031.503] I/user.exsip voip engine stopping
[2026-05-19 11:56:18.147][000000031.503] I/user.sip_callback STATE_CONNECTED call ended table: 0C7B8770 nil
[2026-05-19 11:56:18.160][000000031.504] I/user.sip_callback call event sub_event= ended
[2026-05-19 11:56:18.173][000000031.504] I/user.sip_callback 通话已结束，结束原因为： local_hangup 通话对象： table: 0C7BF168
[2026-05-19 11:56:18.188][000000031.505] I/user.sip_app_main_task_func waitMsg STATE_CONNECTED sip_callback MSG_DISCONNECTED local_hangup
[2026-05-19 11:56:18.198][000000031.506] I/user.sip_app_main_task_func after process STATE_READY
[2026-05-19 11:56:18.203][000000031.506] I/user.sip_app_key 通话已断开
[2026-05-19 11:56:18.211][000000031.514] D/voip voip stop event
[2026-05-19 11:56:18.216][000000031.515] luat_i2s_load_old_config 297:i2s0 load old param
[2026-05-19 11:56:18.223][000000031.517] I/user.exsip voip state: stopped
[2026-05-19 11:56:18.229][000000031.518] I/user.sip_callback STATE_READY voip state stopped nil
[2026-05-19 11:56:18.242][000000031.518] I/user.sip_callback VoIP状态: stopped
[2026-05-19 11:56:18.255][000000031.519] I/user.sip_app_main_task_func waitMsg STATE_READY sip_callback MSG_PLAY_HUNGUP local_hangup
[2026-05-19 11:56:18.263][000000031.520] I/user.sip_app_main_task_func after process STATE_READY

场景三：多网卡联网组合通话保持测试

先断开以太网，用 4g 注册，通话建立的时候再接上以太网，通话能够保持。

SIP 和音频初始化：

[2026-05-18 18:32:49.383][000000009.273] I/user.4G网卡httpdns域名解析成功
[2026-05-18 18:32:49.388][000000009.274] I/user.httpdns baidu.com 110.242.74.102
[2026-05-18 18:32:49.392][000000009.274] I/user.设置网卡 4G
[2026-05-18 18:32:49.399][000000009.275] I/user.netdrv_multiple_notify_cbfunc use new adapter 4G 1
[2026-05-18 18:32:49.404][000000009.276] I/user.exnetif publish network status 4G 1
[2026-05-18 18:32:49.409][000000009.276] dft adapter change from 4 to 1
[2026-05-18 18:32:49.648][000000009.539] I/user.sip_app_main_task_func recv IP_READY 1 4
[2026-05-18 18:32:49.650][000000009.540] I/user.start 开始初始化 SIP，当前状态: STATE_INITING
[2026-05-18 18:32:49.655][000000009.541] I/user.exaudio.setup 使用ES8311 I2S模式初始化
[2026-05-18 18:32:49.659][000000009.541] I2C_MasterSetup 426:I2C0, Total 65 HCNT 22 LCNT 40
[2026-05-18 18:32:49.727][000000009.617] D/audio codec init es8311
[2026-05-18 18:32:50.293][000000010.175] I/user.exaudio.setup 声道数已设置为:1(1=单声道,2=双声道)
[2026-05-18 18:32:50.297][000000010.175] I/user.audio_drv exaudio.setup初始化成功
[2026-05-18 18:32:50.465][000000010.359] I/user.audio_drv 已设置通话音量为: 40
[2026-05-18 18:32:50.657][000000010.543] I/user.audio_drv 已设置麦克风音量为: 98

4g 联网注册 SIP，日志如下：

[2026-05-18 18:32:50.722][000000010.603] I/user.exsip current adapter set: 1
[2026-05-18 18:32:50.760][000000010.608] I/user.sip SIP task uses locked adapter: nil transport: udp
[2026-05-18 18:32:50.765][000000010.609] I/user.sip locked_adapter initialized to default: 1
[2026-05-18 18:32:50.769][000000010.610] I/user.sip creating socket with adapter: 1 locked_adapter: 1
[2026-05-18 18:32:50.775][000000010.611] D/socket connect to 180.152.6.34,8910
[2026-05-18 18:32:50.779][000000010.612] I/user.exsip started adapter nil
[2026-05-18 18:32:50.789][000000010.616] I/user.sip send REGISTER 180.152.6.34 8910
[2026-05-18 18:32:50.801][000000010.619] I/user.exsip event: lifecycle action: online
[2026-05-18 18:32:50.803][000000010.619] I/user.exsip lifecycle: online
[2026-05-18 18:32:50.808][000000010.619] I/user.sip_callback STATE_INITING lifecycle online table: 0C7EC730 nil
[2026-05-18 18:32:50.813][000000010.620] I/user.sip_callback lifecycle event: online
[2026-05-18 18:32:50.821][000000010.620] I/user.sip_callback SIP 服务已在线，本地IP地址为： 10.19.168.88
[2026-05-18 18:32:50.831][000000010.721] I/user.sip resp 401 Unauthorized from 180.152.6.34 8910
[2026-05-18 18:32:50.847][000000010.729] I/user.sip send REGISTER (auth) cseq 2
[2026-05-18 18:32:50.859][000000010.731] I/user.exsip event: register action: challenge
[2026-05-18 18:32:50.865][000000010.732] I/user.sip_callback STATE_INITING register challenge table: 0C7C85D0 nil
[2026-05-18 18:32:50.873][000000010.733] I/user.sip_callback 收到认证挑战，继续注册流程
[2026-05-18 18:32:50.926][000000010.816] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-18 18:32:50.929][000000010.818] I/user.sip next register in 570 sec
[2026-05-18 18:32:50.934][000000010.819] I/user.sip UDP OPTIONS keepalive started, interval 25000 ms
[2026-05-18 18:32:50.945][000000010.820] I/user.exsip event: register action: ok
[2026-05-18 18:32:50.949][000000010.820] I/user.sip_callback STATE_INITING register ok table: 0C7DB3D0 nil
[2026-05-18 18:32:50.954][000000010.821] I/user.sip_callback 注册成功，有效期: 600 SIP响应头: table: 0C7C8118
[2026-05-18 18:32:50.960][000000010.821] I/user.sip_callback STATE_INITING ready nil nil nil
[2026-05-18 18:32:50.968][000000010.822] I/user.sip_callback SIP 服务已就绪当前SIP状态: STATE_INITING
[2026-05-18 18:32:50.973][000000010.823] I/user.sip_app_main_task_func waitMsg STATE_INITING sip_callback MSG_READY nil

拨号测试

单击 boot 键拨号

[2026-05-19 12:02:17.816][000000087.020] I/user.sip_app_key 按下BOOT键
[2026-05-19 12:02:17.818][000000087.021] I/user.sip_app_main_task_func waitMsg STATE_READY sip_app_key MSG_DIAL 100001
[2026-05-19 12:02:17.824][000000087.022] I/user.exsip calling: 100001
[2026-05-19 12:02:17.926][000000087.127] I/user.sip_app_main_task_func after process STATE_DIALING
[2026-05-19 12:02:17.928][000000087.127] I/user.sip cmd call 100001
[2026-05-19 12:02:17.935][000000087.129] I/user.test ip 10.18.1.217
[2026-05-19 12:02:17.940][000000087.131] I/user.sip setting call timeout 30 seconds
[2026-05-19 12:02:17.946][000000087.134] I/user.sip send INVITE sip:100001@180.152.6.34
[2026-05-19 12:02:18.099][000000087.301] I/user.sip resp 407 Proxy Authentication Required from 180.152.6.34 8910
[2026-05-19 12:02:18.119][000000087.317] I/user.exsip event: call action: auth_retry
[2026-05-19 12:02:18.226][000000087.434] I/user.sip resp 100 Trying from 180.152.6.34 8910
[2026-05-19 12:02:18.526][000000087.728] I/user.sip resp 180 Ringing from 180.152.6.34 8910
[2026-05-19 12:02:18.528][000000087.731] I/user.sip invite provisional response 180 Ringing
[2026-05-19 12:02:18.539][000000087.732] I/user.exsip event: call action: ringing
[2026-05-19 12:02:18.545][000000087.733] I/user.sip_callback STATE_DIALING call ringing table: 0C7A2720 nil
[2026-05-19 12:02:18.560][000000087.734] I/user.sip_callback call event sub_event= ringing
[2026-05-19 12:02:18.574][000000087.734] I/user.sip_callback 对方响铃中

对方接听，通话建立

[2026-05-19 12:02:41.321][000000110.523] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-19 12:02:41.325][000000110.526] I/user.sip parsing remote SDP v=0
o=FreeSWITCH 1779148314 1779148315 IN IP4 180.152.6.34
s=FreeSWITCH
c=IN IP4 180.152.6.34
t=0 0
m=audio 15048 RTP/AVP 0 101
a=rtpmap:0 PCMU/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
a=ptime:20

[2026-05-19 12:02:41.331][000000110.528] I/user.sip stopping all call timers, clearing timeout_timer
[2026-05-19 12:02:41.348][000000110.534] I/user.exsip event: media action: ready
[2026-05-19 12:02:41.359][000000110.535] I/user.exsip media ready 180.152.6.34 15048 PCMU
[2026-05-19 12:02:41.366][000000110.535] I/user.exsip start voip engine with adapter: 1 remote: 180.152.6.34:15048
[2026-05-19 12:02:41.373][000000110.537] I/user.exsip voip engine started 180.152.6.34:15048 codec=PCMU adapter nil
[2026-05-19 12:02:41.380][000000110.537] I/user.sip_callback STATE_DIALING media ready table: 0C799CE8 nil
[2026-05-19 12:02:41.393][000000110.538] I/user.sip_callback 媒体通道就绪 180.152.6.34:15048
[2026-05-19 12:02:41.407][000000110.538] I/user.sip call established (outgoing)
[2026-05-19 12:02:41.420][000000110.539] I/user.exsip event: call action: established
[2026-05-19 12:02:41.427][000000110.539] I/user.sip_callback STATE_DIALING call connected table: 0C799608 nil
[2026-05-19 12:02:41.442][000000110.540] I/user.sip_callback call event sub_event= connected
[2026-05-19 12:02:41.456][000000110.540] I/user.sip_callback 通话已建立
[2026-05-19 12:02:41.476][000000110.541] I/user.sip_app_main_task_func waitMsg STATE_DIALING sip_callback MSG_CONNECTED nil
[2026-05-19 12:02:41.489][000000110.542] I/user.sip_app_main_task_func after process STATE_CONNECTED
[2026-05-19 12:02:41.495][000000110.543] I/user.sip_app_key 通话建立成功
[2026-05-19 12:02:41.500][000000110.544] D/voip voip task started
[2026-05-19 12:02:41.508][000000110.544] D/voip voip start event
[2026-05-19 12:02:41.512][000000110.545] E/voip voip config: remote=180.152.6.34:15048 codec=0 ptime=20
[2026-05-19 12:02:41.518][000000110.545] E/voip voio origin: samples=8000
[2026-05-19 12:02:41.525][000000110.545] E/voip voio frame: samples=160 bytes=320
[2026-05-19 12:02:41.530][000000110.553] I/voip aec ready frame=160 tail_ms=200 denoise=1
[2026-05-19 12:02:41.536][000000110.562] E/voip udp socket created and connected to 180.152.6.34:15048
[2026-05-19 12:02:41.547][000000110.562] luat_i2s_save_old_config 279:i2s1 save old param
[2026-05-19 12:02:41.558][000000110.579] E/voip audio started: multimedia_id=0 sample_rate=8000 backend=1
[2026-05-19 12:02:41.566][000000110.580] I/user.exsip voip state: started
[2026-05-19 12:02:41.572][000000110.580] I/user.sip_callback STATE_CONNECTED voip state started nil
[2026-05-19 12:02:41.590][000000110.581] I/user.sip_callback VoIP状态: started
[2026-05-19 12:02:41.606][000000110.582] I/voip voip running: 180.152.6.34:15048 codec=0 ptime=20
[2026-05-19 12:02:46.379][000000115.579] I/user.sip_callback STATE_CONNECTED voip stats table: 0C798C50 nil
[2026-05-19 12:02:46.395][000000115.580] I/user.sip_callback VoIP统计 - 发送: 250 接收: 235 丢失: 0

单击 PWRKEY 键，挂断通话

结束原因为： local_hangup(我方主动挂断)，日志如下：

[2026-05-19 12:02:49.312][000000118.510] I/user.sip_app_key 按下POWERKEY键
[2026-05-19 12:02:49.316][000000118.511] I/user.sip_app_main_task_func waitMsg STATE_CONNECTED sip_app_key MSG_HANGUP nil
[2026-05-19 12:02:49.321][000000118.512] I/user.exsip hanging up
[2026-05-19 12:02:49.328][000000118.512] I/user.sip_app_main_task_func after process STATE_CONNECTED
[2026-05-19 12:02:49.334][000000118.513] I/user.sip cmd hangup
[2026-05-19 12:02:49.340][000000118.514] I/user.sip BYE uri sip:100001@180.152.6.34:8910;transport=udp from sip:100000@180.152.6.34;tag=38642507a004911a to sip:100001@180.152.6.34;tag=ta1p23Zar55ja routes 0
[2026-05-19 12:02:49.350][000000118.517] I/user.sip send BYE
[2026-05-19 12:02:49.407][000000118.608] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-19 12:02:49.415][000000118.611] I/user.exsip event: media action: stop
[2026-05-19 12:02:49.421][000000118.612] I/user.exsip voip engine stopping
[2026-05-19 12:02:49.427][000000118.612] I/user.sip_callback STATE_CONNECTED media stop table: 0C794F20 nil
[2026-05-19 12:02:49.442][000000118.613] I/user.sip_callback 媒体通道已关闭，关闭原因： local_hangup
[2026-05-19 12:02:49.458][000000118.613] I/user.sip call cleared
[2026-05-19 12:02:49.471][000000118.614] I/user.exsip event: call action: ended
[2026-05-19 12:02:49.476][000000118.614] I/user.exsip voip engine stopping
[2026-05-19 12:02:49.482][000000118.615] I/user.sip_callback STATE_CONNECTED call ended table: 0C794E78 nil
[2026-05-19 12:02:49.498][000000118.615] I/user.sip_callback call event sub_event= ended
[2026-05-19 12:02:49.514][000000118.616] I/user.sip_callback 通话已结束，结束原因为： local_hangup 通话对象： table: 0C7A9198
[2026-05-19 12:02:49.531][000000118.617] I/user.sip_app_main_task_func waitMsg STATE_CONNECTED sip_callback MSG_DISCONNECTED local_hangup
[2026-05-19 12:02:49.548][000000118.618] I/user.sip_app_main_task_func after process STATE_READY
[2026-05-19 12:02:49.553][000000118.618] I/user.sip_app_key 通话已断开
[2026-05-19 12:02:49.558][000000118.624] D/voip voip stop event
[2026-05-19 12:02:49.566][000000118.625] luat_i2s_load_old_config 297:i2s0 load old param
[2026-05-19 12:02:49.571][000000118.628] I/user.exsip voip state: stopped
[2026-05-19 12:02:49.577][000000118.629] I/user.sip_callback STATE_READY voip state stopped nil
[2026-05-19 12:02:49.593][000000118.629] I/user.sip_callback VoIP状态: stopped
[2026-05-19 12:02:49.613][000000118.630] I/user.sip_app_main_task_func waitMsg STATE_READY sip_callback MSG_PLAY_HUNGUP local_hangup
[2026-05-19 12:02:49.633][000000118.631] I/user.sip_app_main_task_func after process STATE_READY

来电测试

收到来电

[2026-05-19 12:28:29.467][000001658.652] I/user.sip req INVITE from 180.152.6.34 8910
[2026-05-19 12:28:29.470][000001658.654] I/user.sip parsing remote SDP v=0
o=FreeSWITCH 1779149470 1779149471 IN IP4 180.152.6.34
s=FreeSWITCH
c=IN IP4 180.152.6.34
t=0 0
m=audio 15440 RTP/AVP 102 0 8 103 101
a=rtpmap:102 opus/48000/2
a=fmtp:102 useinbandfec=1; maxaveragebitrate=30000; maxplaybackrate=48000; ptime=20; minptime=10; maxptime=40; stereo=1
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:103 telephone-event/48000
a=fmtp:103 0-15
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
a=ptime:20

[2026-05-19 12:28:29.485][000001658.664] I/user.exsip event: call action: incoming
[2026-05-19 12:28:29.491][000001658.665] I/user.sip_callback STATE_READY call incoming table: 0C7933F0 nil
[2026-05-19 12:28:29.519][000001658.665] I/user.sip_callback call event sub_event= incoming
[2026-05-19 12:28:29.544][000001658.666] I/user.sip_callback 来电: "Extension 100001" sip:100001@180.152.6.34;tag=SrHecpBa2NH8F sip:100000@10.18.1.217:5062;received=36.7.99.190:5062 sip:100000@10.18.1.217:5062;received=36.7.99.190:5062;tag=333567a86744559a
[2026-05-19 12:28:29.578][000001658.667] I/user.exsip event: call action: ringing
[2026-05-19 12:28:29.584][000001658.667] I/user.sip_callback STATE_READY call ringing table: 0C793008 nil
[2026-05-19 12:28:29.612][000001658.668] I/user.sip_callback call event sub_event= ringing
[2026-05-19 12:28:29.638][000001658.668] I/user.sip_callback 对方响铃中
[2026-05-19 12:28:29.671][000001658.669] I/user.exsip event: media action: offer
[2026-05-19 12:28:29.677][000001658.670] I/user.sip_app_main_task_func waitMsg STATE_READY sip_callback MSG_INCOMING "Extension 100001" sip:100001@180.152.6.34;tag=SrHecpBa2NH8F
[2026-05-19 12:28:29.718][000001658.777] I/user.sip_app_main_task_func after process STATE_INCOMING
[2026-05-19 12:28:29.723][000001658.778] I/user.sip_app_key 呼入中，来电号码： 100001
[2026-05-19 12:28:29.728][000001658.794] I/user.sip send OPTIONS ping
[2026-05-19 12:28:29.738][000001658.891] I/user.sip resp 200 OK from 180.152.6.34 8910

单击 boot 键接听来电

[2026-05-19 12:28:37.708][000001666.884] I/user.sip_app_key 按下BOOT键
[2026-05-19 12:28:37.715][000001666.884] I/user.sip_app_key 呼入中，接听
[2026-05-19 12:28:37.722][000001666.885] I/user.sip_app_main_task_func waitMsg STATE_INCOMING sip_app_key MSG_ACCEPT nil
[2026-05-19 12:28:37.728][000001666.886] I/user.exsip answering call
[2026-05-19 12:28:37.733][000001666.886] I/user.sip_app_main_task_func after process STATE_INCOMING
[2026-05-19 12:28:37.741][000001666.887] I/user.sip cmd answer
[2026-05-19 12:28:37.746][000001666.888] I/user.test ip 10.18.1.217
[2026-05-19 12:28:37.752][000001666.891] I/user.sip answer 200 OK
[2026-05-19 12:28:37.861][000001667.045] I/user.sip req ACK from 180.152.6.34 8910
[2026-05-19 12:28:37.877][000001667.048] I/user.exsip event: media action: ready
[2026-05-19 12:28:37.882][000001667.048] I/user.exsip media ready 180.152.6.34 15440 PCMU
[2026-05-19 12:28:37.893][000001667.049] I/user.exsip start voip engine with adapter: 1 remote: 180.152.6.34:15440
[2026-05-19 12:28:37.900][000001667.050] I/user.exsip voip engine started 180.152.6.34:15440 codec=PCMU adapter nil
[2026-05-19 12:28:37.907][000001667.050] I/user.sip_callback STATE_INCOMING media ready table: 0C7A69F0 nil
[2026-05-19 12:28:37.935][000001667.051] I/user.sip_callback 媒体通道就绪 180.152.6.34:15440
[2026-05-19 12:28:37.964][000001667.051] I/user.sip call established (incoming)
[2026-05-19 12:28:37.976][000001667.052] I/user.exsip event: call action: established
[2026-05-19 12:28:37.981][000001667.053] I/user.sip_callback STATE_INCOMING call connected table: 0C7A6180 nil
[2026-05-19 12:28:38.010][000001667.054] I/user.sip_callback call event sub_event= connected
[2026-05-19 12:28:38.039][000001667.054] I/user.sip_callback 通话已建立
[2026-05-19 12:28:38.067][000001667.055] I/user.sip_app_main_task_func waitMsg STATE_INCOMING sip_callback MSG_CONNECTED nil
[2026-05-19 12:28:38.095][000001667.056] I/user.sip_app_main_task_func after process STATE_CONNECTED
[2026-05-19 12:28:38.100][000001667.057] I/user.sip_app_key 通话建立成功
[2026-05-19 12:28:38.107][000001667.057] D/voip voip start event
[2026-05-19 12:28:38.114][000001667.058] E/voip voip config: remote=180.152.6.34:15440 codec=0 ptime=20
[2026-05-19 12:28:38.120][000001667.058] E/voip voio origin: samples=8000
[2026-05-19 12:28:38.126][000001667.059] E/voip voio frame: samples=160 bytes=320
[2026-05-19 12:28:38.132][000001667.066] I/voip aec ready frame=160 tail_ms=200 denoise=1
[2026-05-19 12:28:38.143][000001667.076] E/voip udp socket created and connected to 180.152.6.34:15440
[2026-05-19 12:28:38.151][000001667.076] luat_i2s_save_old_config 279:i2s1 save old param
[2026-05-19 12:28:38.158][000001667.094] E/voip audio started: multimedia_id=0 sample_rate=8000 backend=1
[2026-05-19 12:28:38.166][000001667.095] I/user.exsip voip state: started
[2026-05-19 12:28:38.173][000001667.095] I/user.sip_callback STATE_CONNECTED voip state started nil
[2026-05-19 12:28:38.201][000001667.096] I/user.sip_callback VoIP状态: started
[2026-05-19 12:28:38.231][000001667.097] I/voip voip running: 180.152.6.34:15440 codec=0 ptime=20
[2026-05-19 12:28:42.913][000001672.094] I/user.sip_callback STATE_CONNECTED voip stats table: 0C7A5868 nil
[2026-05-19 12:28:42.940][000001672.095] I/user.sip_callback VoIP统计 - 发送: 250 接收: 226 丢失: 0

单击 PWRKEY 键，挂断通话

结束原因为： local_hangup(我方主动挂断)，日志如下：

[2026-05-19 12:28:45.442][000001674.618] I/user.sip_app_key 按下POWERKEY键
[2026-05-19 12:28:45.444][000001674.619] I/user.sip_app_main_task_func waitMsg STATE_CONNECTED sip_app_key MSG_HANGUP nil
[2026-05-19 12:28:45.450][000001674.619] I/user.exsip hanging up
[2026-05-19 12:28:45.456][000001674.620] I/user.sip_app_main_task_func after process STATE_CONNECTED
[2026-05-19 12:28:45.466][000001674.621] I/user.sip cmd hangup
[2026-05-19 12:28:45.474][000001674.622] I/user.sip BYE uri sip:mod_sofia@180.152.6.34:8910 from <sip:100000@10.18.1.217:5062;
received=36.7.99.190:5062>;tag=333567a86744559a to "Extension 100001" sip:100001@180.152.6.34;tag=SrHecpBa2NH8F routes 0
[2026-05-19 12:28:45.481][000001674.625] I/user.sip send BYE
[2026-05-19 12:28:45.537][000001674.726] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-19 12:28:45.554][000001674.729] I/user.exsip event: media action: stop
[2026-05-19 12:28:45.560][000001674.729] I/user.exsip voip engine stopping
[2026-05-19 12:28:45.567][000001674.730] I/user.sip_callback STATE_CONNECTED media stop table: 0C7B0358 nil

[2026-05-19 12:28:45.596][000001674.730] I/user.sip_callback 媒体通道已关闭，关闭原因： local_hangup
[2026-05-19 12:28:45.627][000001674.731] I/user.sip call cleared
[2026-05-19 12:28:45.639][000001674.732] I/user.exsip event: call action: ended
[2026-05-19 12:28:45.645][000001674.733] I/user.exsip voip engine stopping
[2026-05-19 12:28:45.651][000001674.733] I/user.sip_callback STATE_CONNECTED call ended table: 0C7B0268 nil
[2026-05-19 12:28:45.681][000001674.734] I/user.sip_callback call event sub_event= ended
[2026-05-19 12:28:45.713][000001674.734] I/user.sip_callback 通话已结束，结束原因为： local_hangup 通话对象： table: 0C779AD0
[2026-05-19 12:28:45.751][000001674.736] I/user.sip_app_main_task_func waitMsg STATE_CONNECTED sip_callback MSG_DISCONNECTED local_hangup
[2026-05-19 12:28:45.783][000001674.737] I/user.sip_app_main_task_func after process STATE_READY
[2026-05-19 12:28:45.789][000001674.737] I/user.sip_app_key 通话已断开
[2026-05-19 12:28:45.794][000001674.740] D/voip voip stop event
[2026-05-19 12:28:45.803][000001674.741] luat_i2s_load_old_config 297:i2s0 load old param
[2026-05-19 12:28:45.808][000001674.743] I/user.exsip voip state: stopped
[2026-05-19 12:28:45.815][000001674.744] I/user.sip_callback STATE_READY voip state stopped nil
[2026-05-19 12:28:45.850][000001674.744] I/user.sip_callback VoIP状态: stopped
[2026-05-19 12:28:45.882][000001674.745] I/user.sip_app_main_task_func waitMsg STATE_READY sip_callback MSG_PLAY_HUNGUP local_hangup
[2026-05-19 12:28:45.915][000001674.746] I/user.sip_app_main_task_func after process STATE_READY

通话保持测试

收到来电

[2026-05-18 18:36:28.788][000000228.679] I/user.sip req INVITE from 180.152.6.34 8910
[2026-05-18 18:36:28.803][000000228.681] I/user.sip parsing remote SDP v=0
o=FreeSWITCH 1779084963 1779084964 IN IP4 180.152.6.34
s=FreeSWITCH
c=IN IP4 180.152.6.34
t=0 0
m=audio 15626 RTP/AVP 8 0 101
a=rtpmap:8 PCMA/8000
a=rtpmap:0 PCMU/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
a=ptime:20

[2026-05-18 18:36:28.811][000000228.692] I/user.exsip event: call action: incoming
[2026-05-18 18:36:28.816][000000228.692] I/user.sip_callback STATE_READY call incoming table: 0C7E2BD0 nil
[2026-05-18 18:36:28.825][000000228.693] I/user.sip_callback call event sub_event= incoming
[2026-05-18 18:36:28.835][000000228.693] I/user.sip_callback 来电: "Extension 100001" sip:100001@180.152.6.34;tag=SSy8D698NKK7K sip:100000@10.19.168.88:5062;received=36.7.99.179:5062 sip:100000@10.19.168.88:5062;received=36.7.99.179:5062;tag=6375ca298dc28a56

[2026-05-18 18:36:28.846][000000228.694] I/user.exsip event: call action: ringing
[2026-05-18 18:36:28.850][000000228.695] I/user.sip_callback STATE_READY call ringing table: 0C7E2888 nil
[2026-05-18 18:36:28.857][000000228.695] I/user.sip_callback call event sub_event= ringing
[2026-05-18 18:36:28.867][000000228.696] I/user.sip_callback 对方响铃中
[2026-05-18 18:36:28.879][000000228.697] I/user.exsip event: media action: offer
[2026-05-18 18:36:28.884][000000228.698] I/user.sip_app_main_task_func waitMsg STATE_READY sip_callback MSG_INCOMING "Extension 100001" sip:100001@180.152.6.34;tag=SSy8D698NKK7K
[2026-05-18 18:36:28.926][000000228.803] I/user.sip_app_main_task_func after process STATE_INCOMING
[2026-05-18 18:36:28.928][000000228.804] I/user.sip_app_key 呼入中，来电号码： 100001

单击 boot 键接听来电

[2026-05-18 18:36:36.417][000000236.299] I/user.sip_app_key 按下BOOT键
[2026-05-18 18:36:36.431][000000236.299] I/user.sip_app_key 呼入中，接听
[2026-05-18 18:36:36.443][000000236.300] I/user.sip_app_main_task_func waitMsg STATE_INCOMING sip_app_key MSG_ACCEPT nil
[2026-05-18 18:36:36.455][000000236.301] I/user.exsip answering call
[2026-05-18 18:36:36.469][000000236.301] I/user.sip_app_main_task_func after process STATE_INCOMING
[2026-05-18 18:36:36.481][000000236.302] I/user.sip cmd answer
[2026-05-18 18:36:36.494][000000236.303] I/user.test ip 10.19.168.88
[2026-05-18 18:36:36.510][000000236.306] I/user.sip answer 200 OK
[2026-05-18 18:36:36.526][000000236.397] I/user.sip req ACK from 180.152.6.34 8910
[2026-05-18 18:36:36.571][000000236.400] I/user.exsip event: media action: ready
[2026-05-18 18:36:36.585][000000236.400] I/user.exsip media ready 180.152.6.34 15626 PCMU
[2026-05-18 18:36:36.597][000000236.401] I/user.exsip start voip engine with adapter: 1 remote: 180.152.6.34:15626
[2026-05-18 18:36:36.609][000000236.402] I/user.exsip voip engine started 180.152.6.34:15626 codec=PCMU adapter nil
[2026-05-18 18:36:36.621][000000236.402] I/user.sip_callback STATE_INCOMING media ready table: 0C797F28 nil
[2026-05-18 18:36:36.644][000000236.403] I/user.sip_callback 媒体通道就绪 180.152.6.34:15626
[2026-05-18 18:36:36.668][000000236.403] I/user.sip call established (incoming)
[2026-05-18 18:36:36.698][000000236.404] I/user.exsip event: call action: established
[2026-05-18 18:36:36.711][000000236.405] I/user.sip_callback STATE_INCOMING call connected table: 0C7976B8 nil
[2026-05-18 18:36:36.731][000000236.405] I/user.sip_callback call event sub_event= connected
[2026-05-18 18:36:36.756][000000236.406] I/user.sip_callback 通话已建立
[2026-05-18 18:36:36.778][000000236.407] I/user.sip_app_main_task_func waitMsg STATE_INCOMING sip_callback MSG_CONNECTED nil
[2026-05-18 18:36:36.801][000000236.407] I/user.sip_app_main_task_func after process STATE_CONNECTED
[2026-05-18 18:36:36.812][000000236.408] I/user.sip_app_key 通话建立成功
[2026-05-18 18:36:36.825][000000236.409] D/voip voip task started
[2026-05-18 18:36:36.838][000000236.409] D/voip voip start event
[2026-05-18 18:36:36.851][000000236.410] E/voip voip config: remote=180.152.6.34:15626 codec=0 ptime=20
[2026-05-18 18:36:36.862][000000236.410] E/voip voio origin: samples=8000
[2026-05-18 18:36:36.875][000000236.411] E/voip voio frame: samples=160 bytes=320
[2026-05-18 18:36:36.887][000000236.418] I/voip aec ready frame=160 tail_ms=200 denoise=1
[2026-05-18 18:36:36.901][000000236.426] E/voip udp socket created and connected to 180.152.6.34:15626
[2026-05-18 18:36:36.913][000000236.427] luat_i2s_save_old_config 279:i2s1 save old param
[2026-05-18 18:36:36.925][000000236.444] E/voip audio started: multimedia_id=0 sample_rate=8000 backend=1
[2026-05-18 18:36:36.937][000000236.445] I/user.exsip voip state: started
[2026-05-18 18:36:36.951][000000236.445] I/user.sip_callback STATE_CONNECTED voip state started nil
[2026-05-18 18:36:36.974][000000236.446] I/user.sip_callback VoIP状态: started
[2026-05-18 18:36:36.997][000000236.446] I/voip voip running: 180.152.6.34:15626 codec=0 ptime=20
[2026-05-18 18:36:41.557][000000241.444] I/user.sip_callback STATE_CONNECTED voip stats table: 0C796D90 nil
[2026-05-18 18:36:41.583][000000241.445] I/user.sip_callback VoIP统计 - 发送: 250 接收: 233 丢失: 0

接听过程中连接网线，通话依旧持续进行

[2026-05-18 18:43:10.826][000000630.711] I/netdrv.ch390x link is up 1 12 100M
[2026-05-18 18:43:10.835][000000630.711] D/netdrv 网卡(4)设置为UP
[2026-05-18 18:43:10.884][000000630.769] D/ulwip adapter 4 dhcp start netif c101490
[2026-05-18 18:43:10.886][000000630.769] D/DHCP dhcp discover DC326261779E
[2026-05-18 18:43:10.891][000000630.769] I/ulwip adapter 4 dhcp payload len 282
[2026-05-18 18:43:10.944][000000630.828] D/ulwip 收到DHCP数据包(len=300)
[2026-05-18 18:43:10.946][000000630.828] D/DHCP find ip 6401a8c0 192.168.1.100
[2026-05-18 18:43:10.951][000000630.828] D/DHCP result 2
[2026-05-18 18:43:10.957][000000630.828] D/DHCP got offer, send request
[2026-05-18 18:43:10.962][000000630.829] I/ulwip adapter 4 dhcp payload len 328
[2026-05-18 18:43:10.966][000000630.836] D/ulwip 收到DHCP数据包(len=300)
[2026-05-18 18:43:10.972][000000630.836] D/DHCP find ip 6401a8c0 192.168.1.100
[2026-05-18 18:43:10.976][000000630.836] D/DHCP result 5
[2026-05-18 18:43:10.981][000000630.836] D/DHCP DHCP acquired IP 192.168.1.100
[2026-05-18 18:43:10.985][000000630.836] D/ulwip adapter 4 ip 192.168.1.100
[2026-05-18 18:43:10.991][000000630.836] D/ulwip adapter 4 mask 255.255.255.0
[2026-05-18 18:43:10.996][000000630.836] D/ulwip adapter 4 gateway 192.168.1.1
[2026-05-18 18:43:11.002][000000630.836] D/ulwip adapter 4 lease_time 7200s
[2026-05-18 18:43:11.010][000000630.836] D/ulwip adapter 4 DNS1:192.168.1.1
[2026-05-18 18:43:11.014][000000630.837] D/net network ready 4, setup dns server
[2026-05-18 18:43:11.019][000000630.838] D/netdrv IP_READY 4 192.168.1.100
[2026-05-18 18:43:11.027][000000630.839] I/user.exsip IP_READY 192.168.1.100 4
[2026-05-18 18:43:11.031][000000630.839] I/user.dnsproxy 开始监听
[2026-05-18 18:43:11.040][000000630.840] I/user.ip_ready_handle 192.168.1.100 Ethernet state 3 gw 192.168.1.1
[2026-05-18 18:43:11.052][000000630.841] I/user.sip IP_READY 4
[2026-05-18 18:43:11.197][000000631.082] I/user.sip send OPTIONS ping
[2026-05-18 18:43:11.271][000000631.157] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-18 18:43:11.452][000000631.339] I/user.Ethernet网卡开始PING
[2026-05-18 18:43:11.455][000000631.339] I/user.dns_request Ethernet true
[2026-05-18 18:43:11.459][000000631.341] D/net adapter 4 connect 223.5.5.5:80 TCP
[2026-05-18 18:43:11.486][000000631.369] I/http http close c192a08
[2026-05-18 18:43:11.488][000000631.371] I/user.Ethernet网卡httpdns域名解析成功
[2026-05-18 18:43:11.494][000000631.372] I/user.httpdns baidu.com 124.237.177.164
[2026-05-18 18:43:11.498][000000631.373] I/user.设置网卡 Ethernet
[2026-05-18 18:43:11.507][000000631.373] D/net 设置DNS服务器 id 4 index 0 ip 223.5.5.5
[2026-05-18 18:43:11.514][000000631.375] D/net 设置DNS服务器 id 4 index 1 ip 114.114.114.114
[2026-05-18 18:43:11.520][000000631.375] I/user.netdrv_multiple_notify_cbfunc use new adapter Ethernet 4
[2026-05-18 18:43:11.526][000000631.376] I/user.exnetif publish network status Ethernet 4
[2026-05-18 18:43:11.532][000000631.377] dft adapter change from 1 to 4
[2026-05-18 18:43:13.726][000000633.611] I/user.sip_callback STATE_CONNECTED voip stats table: 0C784700 nil
[2026-05-18 18:43:13.743][000000633.611] I/user.sip_callback VoIP统计 - 发送: 500 接收: 483 丢失: 0

单击 PWRKEY 键，挂断通话

通话结束，结束原因为： local_hangup(我方主动挂断)，日志如下：

[2026-05-18 18:43:18.724][000000638.608] I/user.sip_app_key 按下POWERKEY键
[2026-05-18 18:43:18.726][000000638.609] I/user.sip_app_main_task_func waitMsg STATE_CONNECTED sip_app_key MSG_HANGUP nil
[2026-05-18 18:43:18.731][000000638.610] I/user.exsip hanging up
[2026-05-18 18:43:18.735][000000638.610] I/user.sip_app_main_task_func after process STATE_CONNECTED
[2026-05-18 18:43:18.740][000000638.611] I/user.sip cmd hangup
[2026-05-18 18:43:18.748][000000638.612] I/user.sip BYE uri sip:mod_sofia@180.152.6.34:8910 from sip:100000@10.19.168.88:5062;received=36.7.99.179:5062;tag=a14e0e45c17bc34a to "Extension 100001" sip:100001@180.152.6.34;tag=H89XHBvj3yv7a routes 0
[2026-05-18 18:43:18.755][000000638.615] I/user.sip send BYE
[2026-05-18 18:43:18.761][000000638.620] I/user.sip_callback STATE_CONNECTED voip stats table: 0C783488 nil
[2026-05-18 18:43:18.780][000000638.621] I/user.sip_callback VoIP统计 - 发送: 750 接收: 731 丢失: 0
[2026-05-18 18:43:18.848][000000638.733] I/user.sip resp 200 OK from 180.152.6.34 8910
[2026-05-18 18:43:18.866][000000638.735] I/user.exsip event: media action: stop
[2026-05-18 18:43:18.872][000000638.736] I/user.exsip voip engine stopping
[2026-05-18 18:43:18.876][000000638.737] I/user.sip_callback STATE_CONNECTED media stop table: 0C782488 nil
[2026-05-18 18:43:18.915][000000638.737] I/user.sip_callback 媒体通道已关闭，关闭原因： local_hangup
[2026-05-18 18:43:18.935][000000638.738] I/user.sip call cleared
[2026-05-18 18:43:18.944][000000638.739] I/user.exsip event: call action: ended
[2026-05-18 18:43:18.952][000000638.740] I/user.exsip voip engine stopping
[2026-05-18 18:43:18.956][000000638.741] I/user.sip_callback STATE_CONNECTED call ended table: 0C782398 nil
[2026-05-18 18:43:18.975][000000638.741] I/user.sip_callback call event sub_event= ended
[2026-05-18 18:43:18.994][000000638.741] I/user.sip_callback 通话已结束，结束原因为： local_hangup 通话对象： table: 0C791180
[2026-05-18 18:43:19.019][000000638.743] I/user.sip_app_main_task_func waitMsg STATE_CONNECTED sip_callback MSG_DISCONNECTED local_hangup
[2026-05-18 18:43:19.036][000000638.743] I/user.sip_app_main_task_func after process STATE_READY
[2026-05-18 18:43:19.041][000000638.744] I/user.sip_app_key 通话已断开
[2026-05-18 18:43:19.045][000000638.745] D/voip voip stop event
[2026-05-18 18:43:19.051][000000638.746] luat_i2s_load_old_config 297:i2s0 load old param
[2026-05-18 18:43:19.055][000000638.748] I/user.exsip voip state: stopped
[2026-05-18 18:43:19.060][000000638.749] I/user.sip_callback STATE_READY voip state stopped nil
[2026-05-18 18:43:19.081][000000638.749] I/user.sip_callback VoIP状态: stopped
[2026-05-18 18:43:19.100][000000638.750] I/user.sip_app_main_task_func waitMsg STATE_READY sip_callback MSG_PLAY_HUNGUP local_hangup

注意：多网融合情况下的 SIP 通话测试，只有在非/来电/拨号/通话状态下，才会切换到高优先级的网卡重新注册

七、总结

至此，我们通过 Air780EHV整机开发板演示了在不同网络状态下的拨号，来电、通话、网络切换通话保持全过程，动手试一试吧：

来电：来电时播报来电号码，单击 boot 键接听，单击 PWRKEY 拒接
拨号：在无来电的情况下，单击 boot 拨号，拨号过程中可以单击 PWRKEY 取消拨号
网络切换通话保持：通话过程中出现网络切换不影响通话

04 SIP通话

一、基于 SIP 的 VoIP 通话

1.1 什么是基于 SIP 的 VoIP 通话

1.2 核心工作机制

1.3 主要优势

1.4 典型应用场景

二、演示功能概述

场景一：4g 单网卡联网测试

场景二：以太网单网卡联网测试

场景三：多网卡联网组合通话测试

三、准备硬件环境

四、准备软件环境

4.1 工具 + 内核固件 + 脚本

4.2 API 介绍

4.3MicroSIP/LinPhone 测试 sip 通话功能

PC 端软件：MicroSIP

添加账号信息

来电\拨号\通话

4.4 安卓版软件：Linphone

添加账号信息

来电\拨号\通话

五、代码演示

六、功能演示

场景一：4g 单网卡联网测试

SIP 和音频初始化：

4g 联网注册 SIP，日志如下：

拨号测试

单击 boot 键拨号

对方接听，通话建立

单击 PWRKEY 键，挂断通话

来电接听测试

收到来电

单击 boot 键接听来电

单击 PWRKEY 键，挂断通话

场景二：以太网单网卡联网拨号测试

SIP 和音频初始化：

以太网联网注册 SIP，日志如下：

拨号测试

单击 boot 键拨号

对方接听，通话建立

单击 PWRKEY 键，挂断通话

来电接听测试

收到来电

单击 boot 键接听来电

单击 PWRKEY 键，挂断通话

场景三：多网卡联网组合通话保持测试

SIP 和音频初始化：

4g 联网注册 SIP，日志如下：

拨号测试

单击 boot 键拨号

对方接听，通话建立

单击 PWRKEY 键，挂断通话

来电测试

收到来电

单击 boot 键接听来电

单击 PWRKEY 键，挂断通话

通话保持测试

收到来电

单击 boot 键接听来电

接听过程中连接网线，通话依旧持续进行

单击 PWRKEY 键，挂断通话

七、 总结

七、总结
