规格书
Air8000

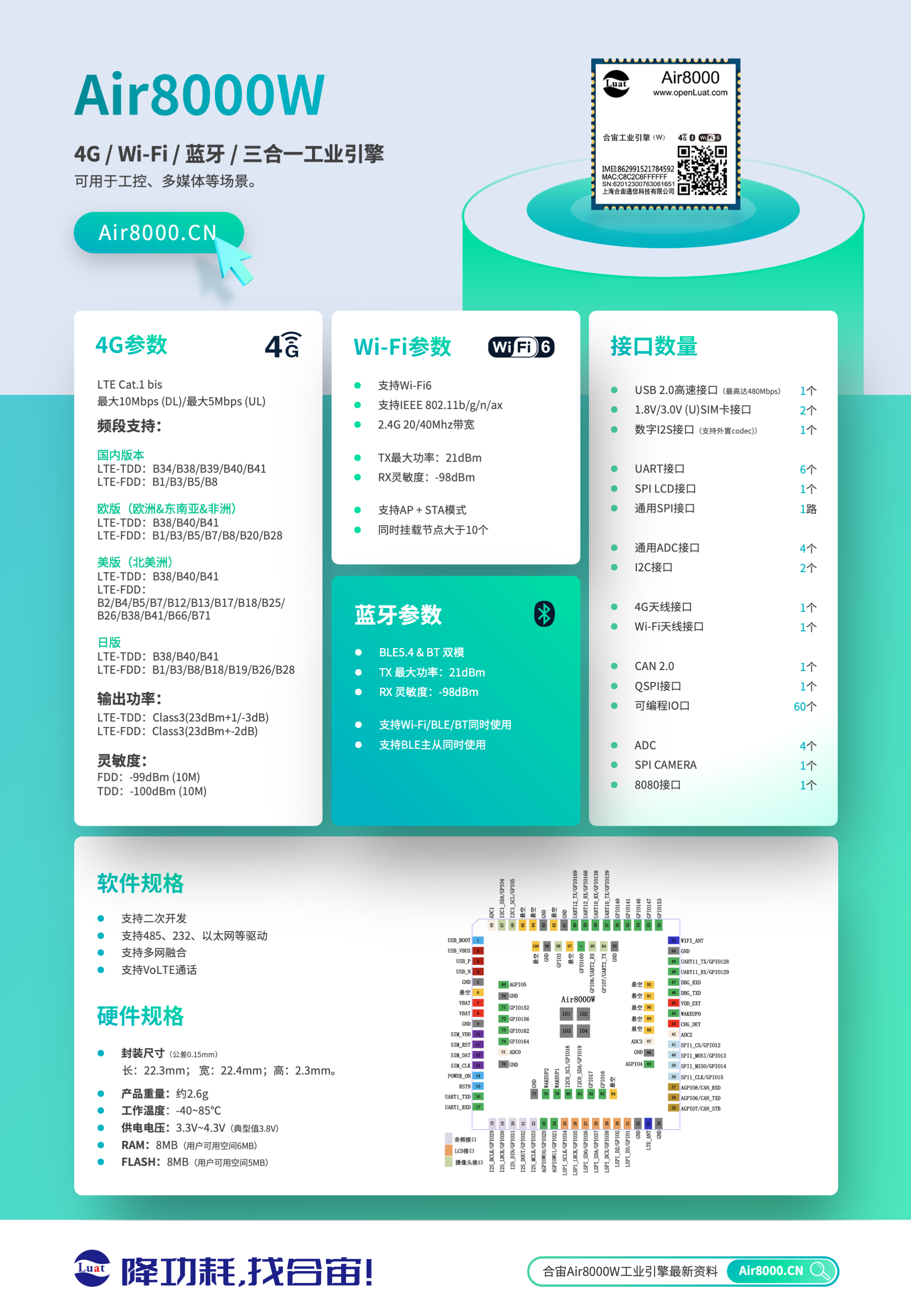

Air8000W
管脚映射

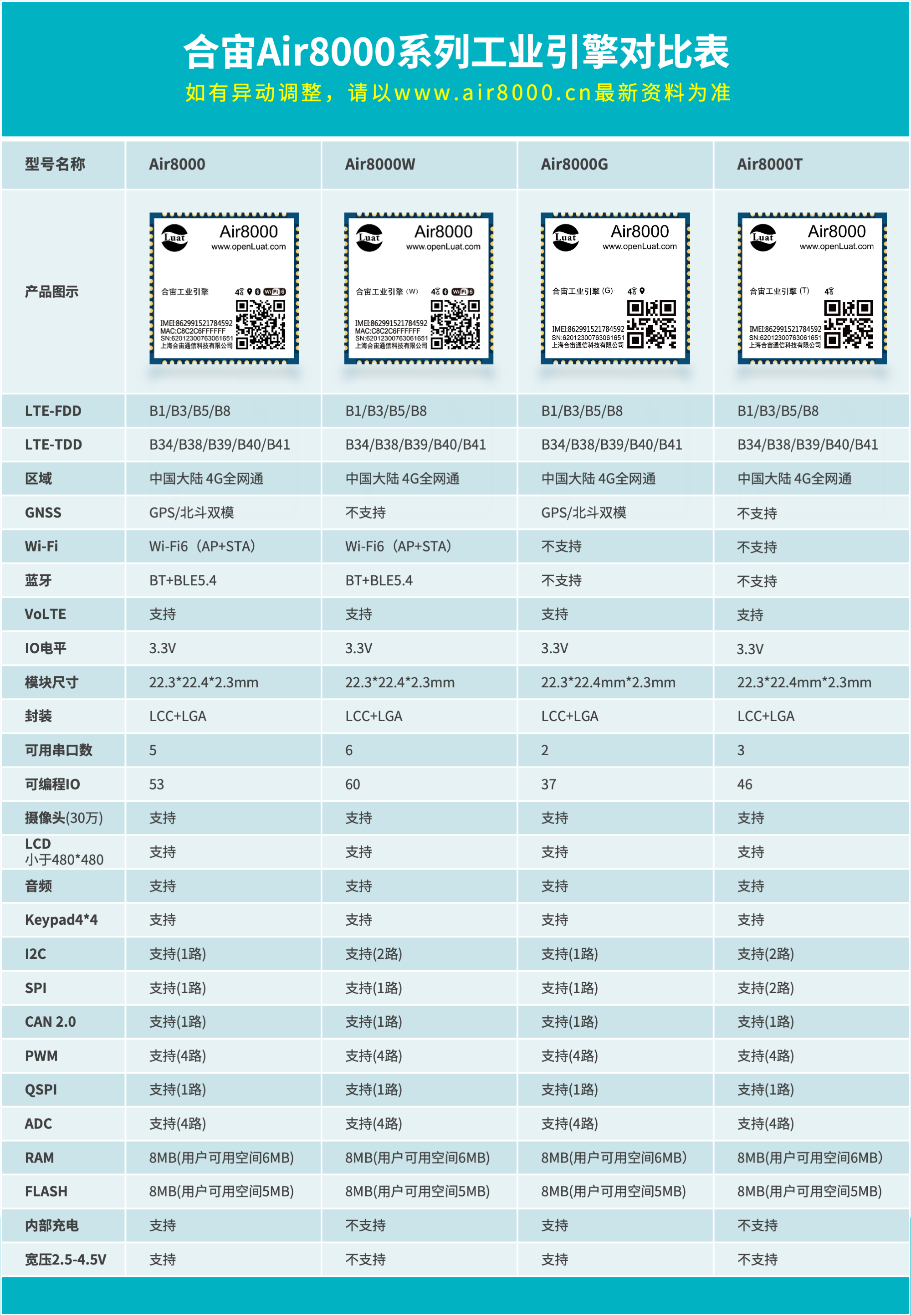

功能对比
| 功能 | Air8000 | Air8000W |
|---|---|---|
| WIFI | √ | √ |
| 卫星定位 | √ | × |
| 三轴加速度计 | √ | × |
| 蓝牙 | √ | √ |
| 可用串口数 | 5 | 6 |
| 可编程IO口 | 50 | 58 |
| 摄像头 | √ | √ |
| 摄像头(硬件加速) | × | √ |
| LCD | √ | √ |
| LCD(硬件加速) | √ | √ |
| 音频 | √ | √ |
| keypad4*4 | √ | √ |
| 8080 | × | √ |
| I2C | √ | √ |
| SPI | √ | √ |
| CAN | √ | √ |
| PWM | √ | √ |
| 充电 | √ | × |
| 聚合物电池 | √ | √ |
| 锂锰电池 | √ | × |
| 功能 | Air8000 | Air8000W |
|---|---|---|
| WIFI | √ | √ |
| 卫星定位 | √ | × |
| 三轴加速度计 | √ | × |
| 蓝牙 | √ | √ |
| 可用串口数 | 5 | 6 |
| 可编程IO口 | 50 | 58 |
| 摄像头 | √ | √ |
| 摄像头(硬件加速) | × | √ |
| LCD | √ | √ |
| LCD(硬件加速) | √ | √ |
| 音频 | √ | √ |
| keypad4*4 | √ | √ |
| 8080 | × | √ |
| I2C | √ | √ |
| SPI | √ | √ |
| CAN | √ | √ |
| PWM | √ | √ |
| 充电 | √ | × |
| 聚合物电池 | √ | √ |
| 锂锰电池 | √ | × |
